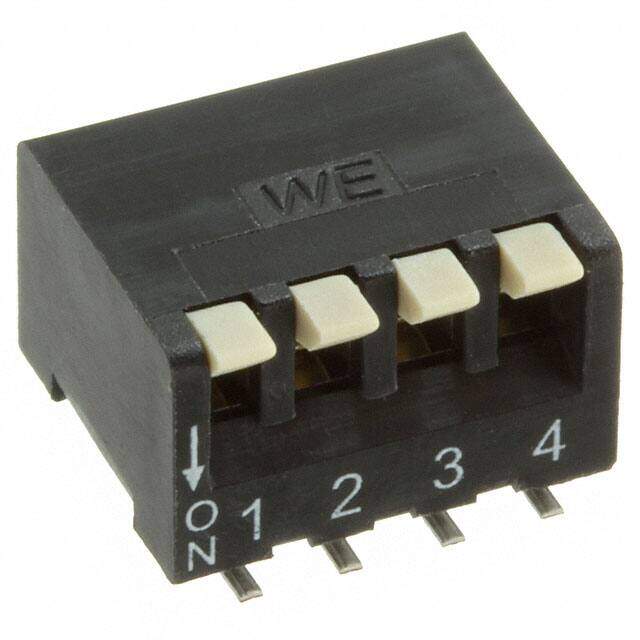

418311170804
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / DIP Switches
Description
SWITCH PIANO DIP SPST 25MA 24V
PDF
/
Inventory: 4682
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Height Above Board 0.275 6.99mm
Width 11.16mm
Length 0.439 11.16mm
Height 6.5mm
Technical
Actuator Level Flush, Recessed
Washable No
Mechanical Life 5,000 Cycles
Max Voltage Rating (DC) 24V
Throw Configuration SPST
Electrical Life 2,000 Cycles
Number of Circuits 4
Insulation Resistance 100MOhm
Contact Resistance 50mOhm
Circuit SPST
Actuator Type Piano
Termination Style Gull Wing
Contact Finish Gold
Current Rating 25mA
Pitch 0.100 2.54mm Full
Current Rating (Amps) 25mA
Voltage - Rated DC 24V
Voltage - Rated 24VDC
Color Black
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Number of Positions 4
Termination Gull Wing
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series WS-DISU
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Body Material Polyphenylene Sulfide (PPS)
Material PBT
Mounting Type Surface Mount, Right Angle
Mount Surface Mount
Contact Plating Gold
Contact Material Gold
