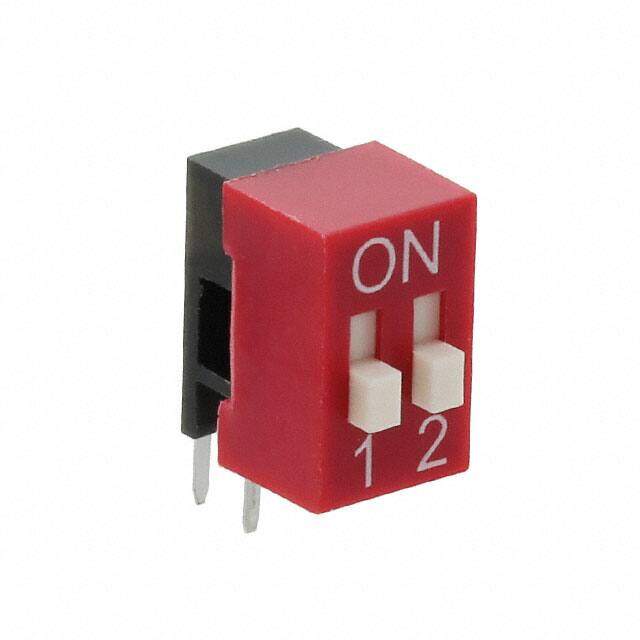

418217270902
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / DIP Switches
Description
SWITCH SLIDE DIP SPST 25MA 24V
PDF
/
Inventory: 1909
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Above Board 0.378 9.60mm
Length 0.239 6.08mm
Technical
Actuator Level Raised
Washable No
Mechanical Life 5,000 Cycles
Throw Configuration SPST
Electrical Life 2,000 Cycles
Circuit SPST
Actuator Type Slide (Standard)
Termination Style PC Pin
Contact Finish Gold
Current Rating 25mA
Pitch 0.100 2.54mm Full
Current Rating (Amps) 25mA
Voltage - Rated DC 24V
Voltage - Rated 24VDC
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Number of Positions 2
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series WS-DITU
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Body Material Polyamide (PA66), Nylon 6/6
Mounting Type Through Hole, Right Angle
Contact Plating Gold
