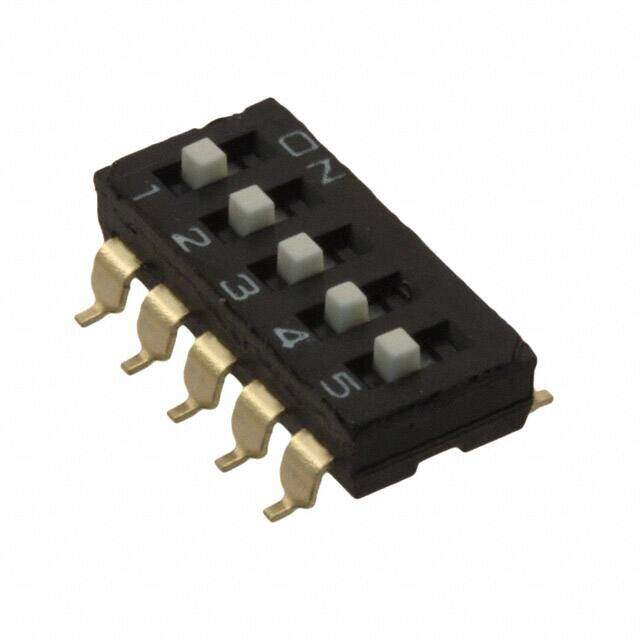

A6S-5104
RoHS
/
Package /
Category Switches / DIP Switches
Description
Switch DIP OFF ON SPST 5 Raised Slide 0.025A 24VDC Gull Wing 1000Cycles 2.54mm SMD Stick
PDF
/
Inventory: 2322
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height Above Board 0.173 4.40mm
Body Height 3.7mm
Length 0.537 13.64mm
Technical
Actuator Level Raised
Washable No
Switch Action LATCHED
Contact Function ON-OFF
Number of Switch Sections 5
Switch Type SLIDE DIP SWITCH
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Max Current Rating 25mA
Insulation Resistance 100000000Ohm
Contact Resistance 0.2mOhm
Circuit SPST
Actuator Type Slide (Standard)
Body Breadth 6.2 mm
Termination Style Gull Wing
Current Rating 25mA
Orientation Straight
Pitch 0.100 2.54mm Full
Voltage - Rated DC 24V
Voltage - Rated 24VDC
Number of Positions 5
ECCN Code EAR99
Termination Gull Wing
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Series A6S
Published 2007
Packaging Tube
Operating Temperature -20°C~70°C
Physical
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Gold
