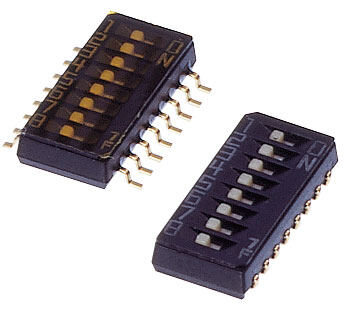

CHS-02TA1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / DIP Switches
Description
SWITCH SLIDE DIP SPST 100MA 6V
PDF
/
Buying Options
Total Price: USD $2.42
Unit Price: USD $2.4168
≥1 USD $2.4168
≥10 USD $1.98265
≥100 USD $1.9209
≥500 USD $1.85915
≥1000 USD $1.7974
Inventory: 832
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Above Board 0.098 2.50mm
Width 2.5mm
Length 0.161 4.10mm
Height 2.5mm
Technical
Solderability REFLOW
Actuator Level Flush, Recessed
Washable No
Switch Type SLIDE DIP SWITCH
Max Voltage Rating (DC) 24V
Throw Configuration DPST, SPST
Electrical Life 2,000 Cycles
Dielectric Withstanding Voltage 500VAC V
Insulation Resistance 1000000000Ohm
Contact Resistance 0.05mOhm
Circuit SPST
Actuator Type Slide (Standard)
Termination Style J Lead
Contact Finish Gold
Current Rating 100mA
Pitch 0.050 1.27mm Half
Voltage - Rated DC 6V
Voltage - Rated 6VDC
Number of Positions 2
ECCN Code EAR99
Termination J-Hook
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e4
Series CHS
Published 2015
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Body Material Polyphenylene Sulfide (PPS)
Housing Material POLYPHENYLENE SULPHIDE
Insulation Material POLYPHENYLENE SULPHIDE
Mounting Type Surface Mount
Mount Surface Mount
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 11 Weeks
