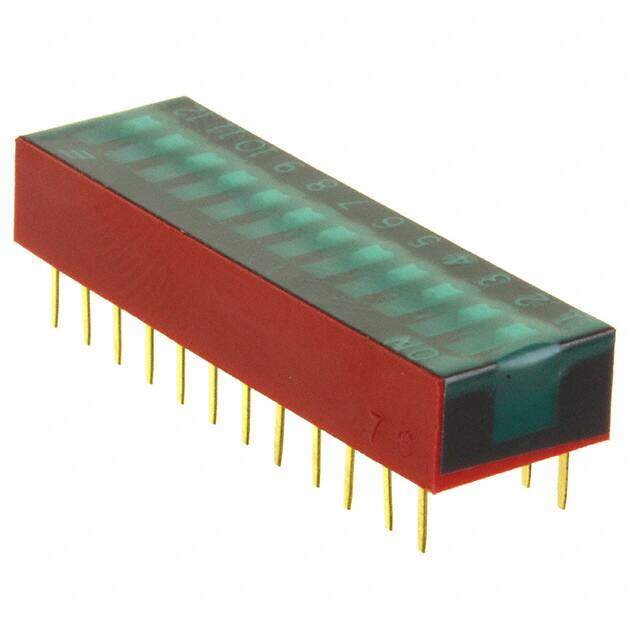

KAS1112RT image
Favorite
KAS1112RT image
Favorite

KAS1112RT

E-Switch
RoHS
RoHS RoHS compliant
Package /
Category Switches / DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V
PDF
/
Inventory: 6704
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Technical

Feature Tape Seal
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Positions 12
Voltage - Rated 24VDC
Current Rating (Amps) 25mA
Pitch 0.100 2.54mm Full
Contact Finish Gold
Termination Style PC Pin
Body Breadth 9.8806 mm
Actuator Type Slide (Standard)
Circuit SPST
Contact Resistance 0.05mOhm
Insulation Resistance 100000000Ohm
Contact Current(DC)-Max 0.025A
Contact Voltage(DC)-Max 24V
Dielectric Withstanding Voltage 500VRMS V
Electrical Life 2,000 Cycles
Mechanical Life 2,000 Cycles
Switch Type SLIDE DIP SWITCH
PCB Hole Count 24
Washable Yes
Actuator Level Flush, Recessed
Series KAS
Published 2006
Packaging Tube
Operating Temperature -40°C~85°C

Dimensions

Length 1.254 31.84mm
Body Height 5.9944mm
Height Above Board 0.236 6.00mm

Compliance

RoHS Status ROHS3 Compliant

Physical

Body Material Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze

Supply Chain

Factory Lead Time 11 Weeks
