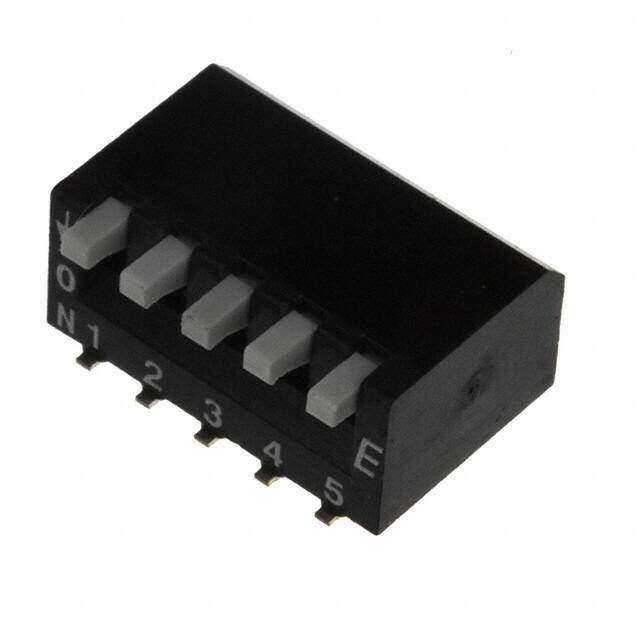

KAR05LGGT
RoHS
/
Package /
Category Switches / DIP Switches
Description
SWITCH PIANO DIP SPST 25MA 24V
PDF
/
Buying Options
Total Price: USD $2.2
Unit Price: USD $2.197795
≥1 USD $2.197795
≥210 USD $0.877017
≥490 USD $0.848133
≥1015 USD $0.833692
Inventory: 5617
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height Above Board 0.287 7.30mm
Body Height 7.2898mm
Length 0.590 14.99mm
Technical
Actuator Level Raised
Washable Yes
Number of Switch Sections 5
Mechanical Life 2,000 Cycles
Contact Voltage(DC)-Max 24V
Insulation Resistance 1000000000Ohm
Contact Resistance 0.1mOhm
Circuit SPST
Actuator Type Piano
Body Breadth 8.9916 mm
Termination Style Gull Wing
Contact Finish Gold
Pitch 0.100 2.54mm Full
Current Rating (Amps) 25mA
Voltage - Rated 24VDC
Number of Positions 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Process Sealed
Series KAR
Published 2006
Packaging Tube
Operating Temperature -30°C~85°C
Physical
Terminal Material BRASS
Body Material Polyphenylene Sulfide (PPS)
Insulation Material POLYPHENYLENE SULPHIDE
Mounting Type Surface Mount, Right Angle
Mount Surface Mount
Contact Material Copper Alloy
