KAP1106E
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / DIP Switches
Description

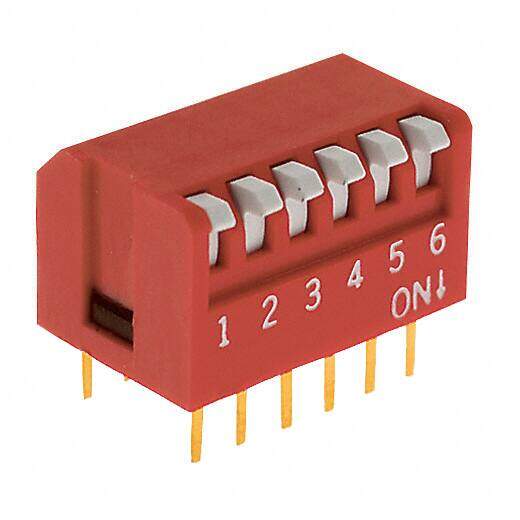

SWITCH PIANO DIP SPST 25MA 24V
PDF
/
Inventory: 3780
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole, Right Angle
Insulation Material GLASS FILLED POLYESTER
Body Material Polybutylene Terephthalate (PBT), Glass Filled
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Published 2003
Series KAP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
Number of Positions 6
Voltage - Rated 24VDC
Voltage - Rated DC 24V
Pitch 0.100 2.54mm Full
Current Rating 25mA
Contact Finish Gold
Termination Style PC Pin
Body Breadth 10.795 mm
Actuator Type Piano
Circuit SPST
Contact Resistance 0.05mOhm
Insulation Resistance 100000000Ohm
Contact Current(DC)-Max 0.1A
Contact Voltage(DC)-Max 50V
Dielectric Withstanding Voltage 500VRMS V
Electrical Life 2,000 Cycles
Mechanical Life 2,000 Cycles
Contact Timing MAKE-BEFORE-BREAK
Contact (DC) Max Rating R Load 0.1A@50VDC
Number of Switch Sections 6
PCB Hole Count 12
Contact Function OFF-(ON)
Washable No
Actuator Level Raised
Solderability WAVE
Actuator Angle 30 deg
