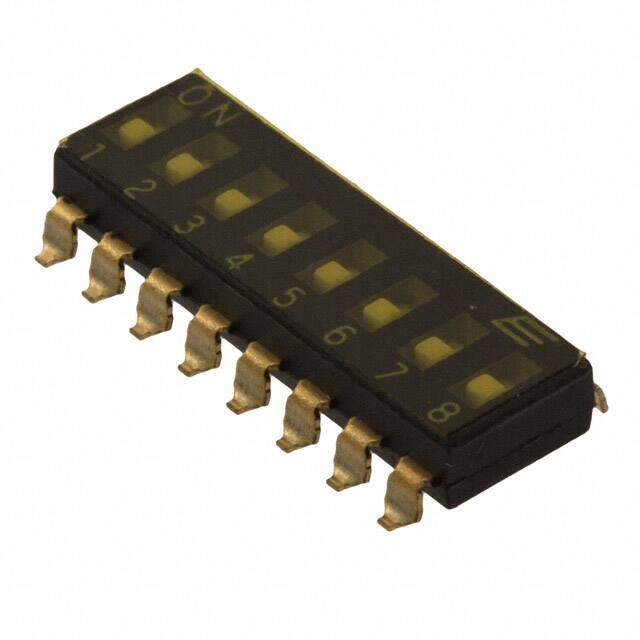

KAJ08TGGT image
Favorite
KAJ08TGGT image
Favorite

KAJ08TGGT

E-Switch
RoHS
/
Package /
Category Switches / DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V
PDF
/
Inventory: 5611
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Contact Material Copper Alloy
Mount Surface Mount
Mounting Type Surface Mount
Body Material Polyphenylene Sulfide (PPS)

Technical

Operating Temperature -40°C~85°C
Packaging Tube
Published 2002
Series KAJ
JESD-609 Code e4
Feature Tape Seal
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Gull Wing
ECCN Code EAR99
Number of Positions 8
Voltage - Rated 24VDC
Additional Feature LOW PROFILE
Current Rating (Amps) 25mA
Pitch 0.100 2.54mm Full
Orientation Straight
Terminal Pitch 2.54mm
Contact Finish Gold
Termination Style Gull Wing
Actuator Type Slide (Standard)
Circuit SPST
Contact Current(DC)-Max 0.025A
Electrical Life 2,000 Cycles
Max Voltage Rating (DC) 24V
Mechanical Life 2,000 Cycles
Switch Type SLIDE DIP SWITCH
Number of Switch Sections 8
Washable Yes
Actuator Level Flush, Recessed

Dimensions

Length 0.800 20.32mm
Body Height 3.2mm
Actuator Length 0m
Height Above Board 0.140 3.55mm

Compliance

RoHS Status RoHS Compliant
