218-2LPSF
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / DIP Switches
Description
Switch DIP OFF ON SPST 2 Recessed Slide 0.025A 24VDC Gull Wing SMD Tube
PDF
/
Buying Options
Total Price: USD $1.71
Unit Price: USD $1.712022
≥1 USD $1.712022
≥145 USD $0.684021
≥435 USD $0.660389
≥1015 USD $0.649886
Inventory: 4490
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Beryllium Copper
Mounting Type Surface Mount
Surface Mount NO
Technical
Operating Temperature -55°C~85°C
Packaging Tube
Published 2008
Series 218
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Number of Positions 2
Voltage - Rated 24VDC
HTS Code 8536.50.90.65
Current Rating (Amps) 25mA
Pitch 0.050 1.27mm Half
Contact Finish Gold
Termination Style Gull Wing
Body Breadth 3.71 mm
Actuator Type Slide (Standard)
Circuit SPST
Sealing BOTTOM SEALED
Electrical Life 1,000 Cycles
Switch Type SLIDE DIP SWITCH
Number of Switch Sections 2
Washable No
Actuator Level Flush, Recessed

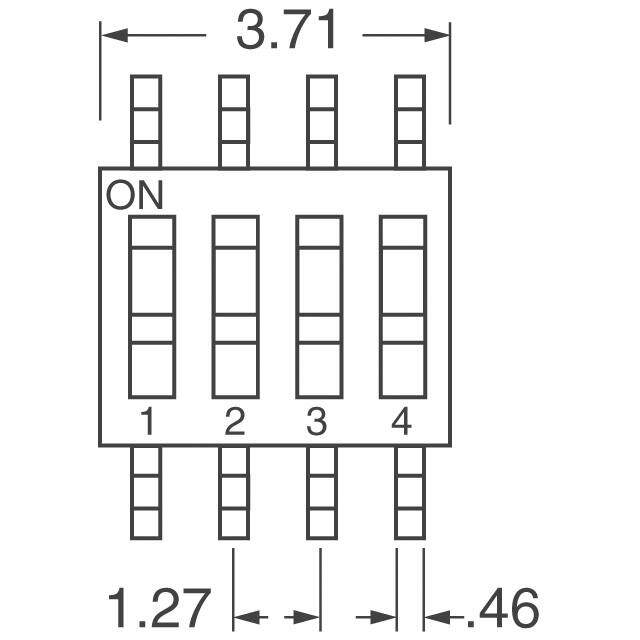

Dimensions
Length 0.146 3.71mm
Height Above Board 0.104 2.65mm
Compliance
RoHS Status RoHS Compliant
