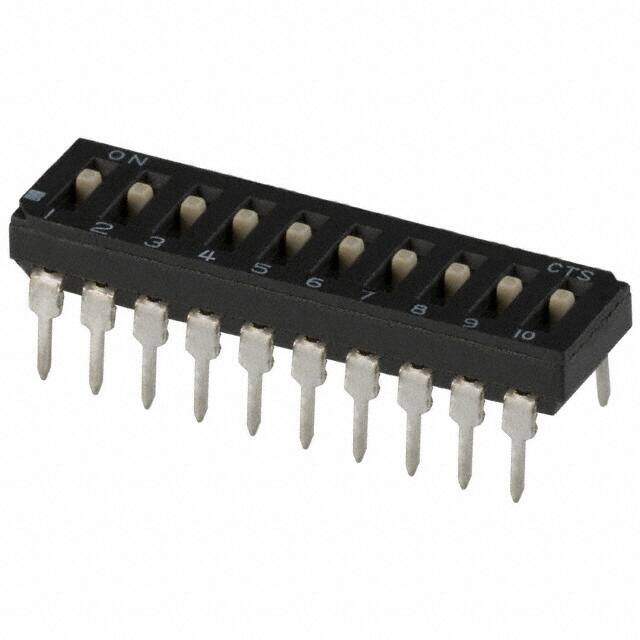

209-10LPST image
Favorite
209-10LPST image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Switches / DIP Switches
Description SWITCH SLIDE DIP SPST 100MA 20V
PDF
/
Buying Options
Total Price: USD $0.97
Unit Price: USD $0.968
≥1 USD $0.968
≥10 USD $0.9284
≥100 USD $0.87274
≥500 USD $0.753896
≥1000 USD $0.687078
≥3000 USD $0.638774
Inventory: 4229
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Height Above Board 0.180 4.57mm
Body Height 3.8mm
Length 1.058 26.87mm

Technical

Actuator Level Flush, Recessed
Washable Yes
Number of Switch Sections 10
Switch Type SLIDE DIP SWITCH
Electrical Life 2,000 Cycles
Contact Voltage(DC)-Max 20V
Sealing BOTTOM SEALED; TOP TAPE SEALED
Contact Current(DC)-Max 0.1A
Circuit SPST
Actuator Type Slide (Standard)
Body Breadth 6.7 mm
Termination Style PC Pin
Contact Finish Gold
Pitch 0.100 2.54mm Full
Current Rating (Amps) 100mA
HTS Code 8536.50.90.65
Voltage - Rated 20VDC
Terminal Finish Tin (Sn)
Number of Positions 10
ECCN Code EAR99
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals, Tape Seal
JESD-609 Code e3
Series 209
Published 2008
Packaging Tube
Operating Temperature -40°C~85°C

Physical

Surface Mount NO
Mounting Type Through Hole
Contact Material Beryllium Copper

Supply Chain

Factory Lead Time 8 Weeks
