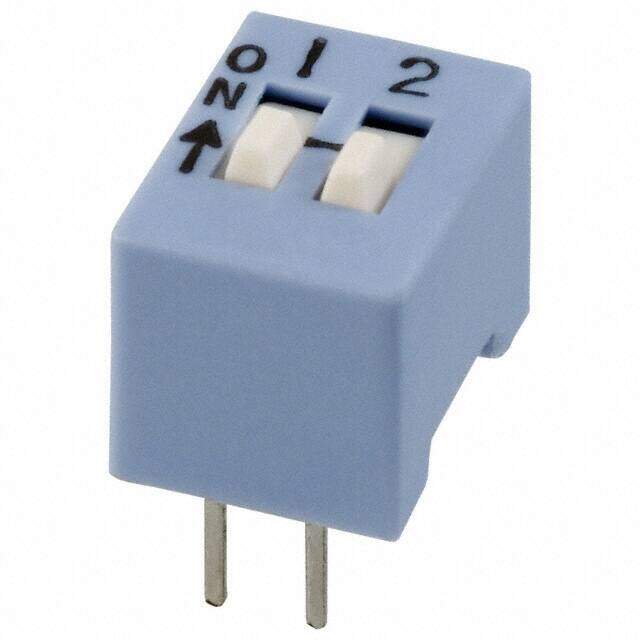

206-2ST
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / DIP Switches
Description
SWITCH SLIDE DIP SPST 50MA 24V
PDF
/
Buying Options
Total Price: USD $0.75
Unit Price: USD $0.748
≥1 USD $0.748
≥10 USD $0.72424
≥100 USD $0.632192
≥500 USD $0.587664
≥1000 USD $0.53475
≥3000 USD $0.495748
Inventory: 1521
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mounting Type Through Hole
Surface Mount NO
Body Material Plastic
Center Contact Material COPPER ALLOY
Terminal Material COPPER ALLOY
End Contact Material COPPER ALLOY
Technical
Operating Temperature -55°C~85°C
Packaging Tube
Published 2010
Series 206
JESD-609 Code e3
Feature Epoxy Sealed Terminals, Tape Seal
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Number of Positions 2
Terminal Finish Matte Tin (Sn) - reflowed over Nickel (Ni) barrier
Voltage - Rated 24VDC
HTS Code 8536.50.90.65
Current Rating (Amps) 50mA
Pitch 0.100 2.54mm Full
Contact Finish Gold
Termination Style PC Pin
Actuator Type Slide (Standard)
Circuit SPST
Insulation Resistance 1000000000Ohm
Contact Current(DC)-Max 0.05A
Sealing EPOXY TERMINAL SEALED; TOP TAPE SEALED
Dielectric Withstanding Voltage 500VAC V
Electrical Life 10,000 Cycles
Switch Type SLIDE DIP SWITCH
Number of Switch Sections 2
PCB Hole Count 4
Contact Function OFF-ON
Washable Yes
Actuator Level Raised
Dimensions
Length 0.286 7.26mm
Body Height 7.6mm
Height Above Board 0.334 8.48mm
Compliance
RoHS Status RoHS Compliant
