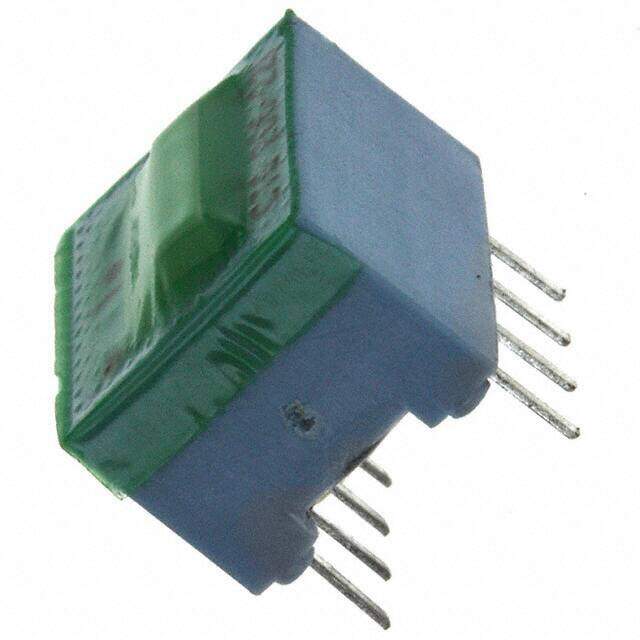

206-221ST
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / DIP Switches
Description
SWITCH SLIDE DIP DPDT 50MA 24V
PDF
/
Buying Options
Total Price: USD $4.53
Unit Price: USD $4.529505
≥1 USD $4.529505
≥180 USD $1.807863
≥495 USD $1.74747
≥990 USD $1.717273
Inventory: 1524
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Through Hole
Surface Mount NO
Body Material Plastic
Technical
Operating Temperature -55°C~85°C
Packaging Tube
Published 2010
Series 206
JESD-609 Code e4
Feature Epoxy Sealed Terminals, Tape Seal
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
ECCN Code EAR99
Number of Positions 1
Voltage - Rated 24VDC
HTS Code 8536.50.90.65
Current Rating (Amps) 50mA
Pitch 0.100 2.54mm Full
Contact Finish Gold
Termination Style PC Pin
Body Breadth 9.78 mm
Actuator Type Slide (Standard)
Circuit DPDT
Contact Current(DC)-Max 0.05A
Sealing EPOXY TERMINAL SEALED; TOP TAPE SEALED
Contact Voltage(DC)-Max 24V
Electrical Life 10,000 Cycles
Switch Type SLIDE DIP SWITCH
Number of Switch Sections 1
Washable Yes
Actuator Level Raised
Dimensions
Body Height 7.6mm
Height Above Board 0.334 8.48mm
Compliance
RoHS Status RoHS Compliant
