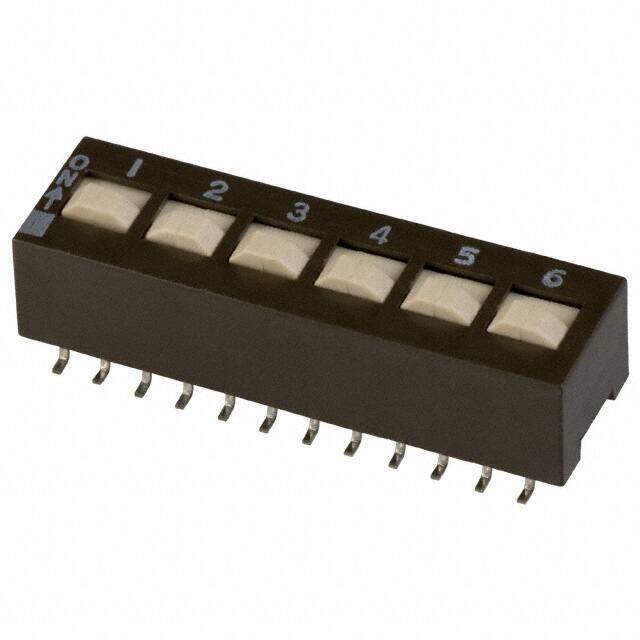

204-216ST image
Favorite
204-216ST image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Switches / DIP Switches
Description SWITCH SLIDE DIP DPST 50MA 24V
PDF
/
Buying Options
Total Price: USD $2.52
Unit Price: USD $2.519455
≥1 USD $2.519455
≥195 USD $1.005681
≥495 USD $0.971546
≥1005 USD $0.955791
Inventory: 1949
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Height Above Board 0.394 10.00mm
Body Height 9.12mm
Length 1.286 32.66mm

Technical

Actuator Level Raised
Washable Yes
Number of Switch Sections 6
Contact (DC) Max Rating R Load .1A@50VDC
Switch Type SLIDE DIP SWITCH
Electrical Life 5,000 Cycles
Contact Voltage(DC)-Max 50V
Sealing BOTTOM SEALED; TOP TAPE SEALED
Contact Current(DC)-Max 0.1A
Circuit DPST
Actuator Type Slide (Standard)
Body Breadth 10.41 mm
Termination Style Gull Wing
Contact Finish Gold
Pitch 0.100 2.54mm Full
Current Rating (Amps) 50mA
Voltage - Rated 24VDC
Terminal Finish Tin (Sn)
Number of Positions 6
ECCN Code EAR99
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Epoxy Sealed Terminals, Tape Seal
JESD-609 Code e3
Series 204
Published 2008
Packaging Tube
Operating Temperature -55°C~85°C

Physical

Body Material Plastic
Surface Mount NO
Mounting Type Surface Mount

Supply Chain

Factory Lead Time 8 Weeks
