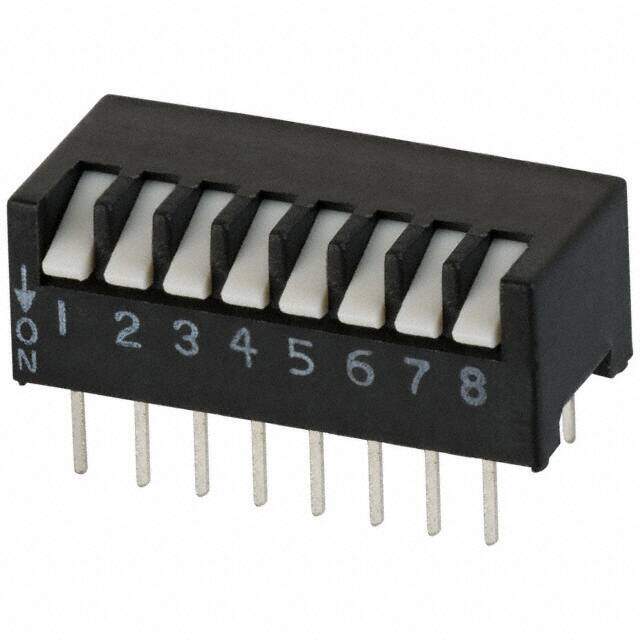

195-8MST
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / DIP Switches
Description
SWITCH PIANO DIP SPST 50MA 24V
PDF
/
Buying Options
Total Price: USD $0.96
Unit Price: USD $0.9592
≥1 USD $0.9592
≥10 USD $0.92312
≥100 USD $0.8624
≥500 USD $0.748792
≥1000 USD $0.681402
≥3000 USD $0.631699
Inventory: 1806
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mounting Type Through Hole, Right Angle
Surface Mount NO
Mounting Feature THROUGH HOLE-STRAIGHT
Body Material Plastic
Center Contact Plating TIN
Center Contact Material COPPER ALLOY
End Contact Material COPPER ALLOY
End Contact Plating TIN
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Published 2008
Series 195
Feature Epoxy Sealed Terminals, Tape Seal
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
ECCN Code EAR99
Number of Positions 8
Voltage - Rated 24VDC
Additional Feature SHIP AT OFF POSN,TOP TAPE SEAL
Current Rating (Amps) 50mA
Pitch 0.100 2.54mm Full
Contact Finish Tin
Termination Style PC Pin
Body Breadth 9.65 mm
Actuator Type Piano
Circuit SPST
Contact Resistance 0.5mOhm
Insulation Resistance 1000000000Ohm
Contact Current(DC)-Max 0.05A
Sealing TOP TAPE SEALED
Contact Voltage(DC)-Max 24V
Dielectric Withstanding Voltage 500VAC V
Electrical Life 2,000 Cycles
Number of Switch Sections 8
Washable Yes
Actuator Level Raised
Dimensions
Length 0.886 22.50mm
Body Height 7.9mm
Height Above Board 0.311 7.90mm
Compliance
RoHS Status RoHS Compliant
