193-2MSN
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / DIP Switches
Description
Switch DIP ON OFF SPST 2 Piano 0.05A 24VDC Gull Wing SMD Tube
PDF
/
Inventory: 5166
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mounting Type Surface Mount, Right Angle
Surface Mount NO
Mounting Feature SURFACE MOUNT-STRAIGHT
Body Material Plastic
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Published 2014
Series 193
JESD-609 Code e3
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Number of Positions 2
Terminal Finish Tin (Sn)
Voltage - Rated 24VDC
Additional Feature SHIP AT ON POSITION
HTS Code 8536.50.90.40
Current Rating (Amps) 50mA
Pitch 0.100 2.54mm Full
Contact Finish Gold
Termination Style Gull Wing
Actuator Type Piano
Circuit SPST
Contact Resistance 0.1mOhm
Insulation Resistance 1000000000Ohm
Contact Current(DC)-Max 0.05A
Sealing EPOXY TERMINAL SEALED
Dielectric Withstanding Voltage 500VAC V
Electrical Life 7,000 Cycles
Number of Switch Sections 2
Washable No
Actuator Level Raised

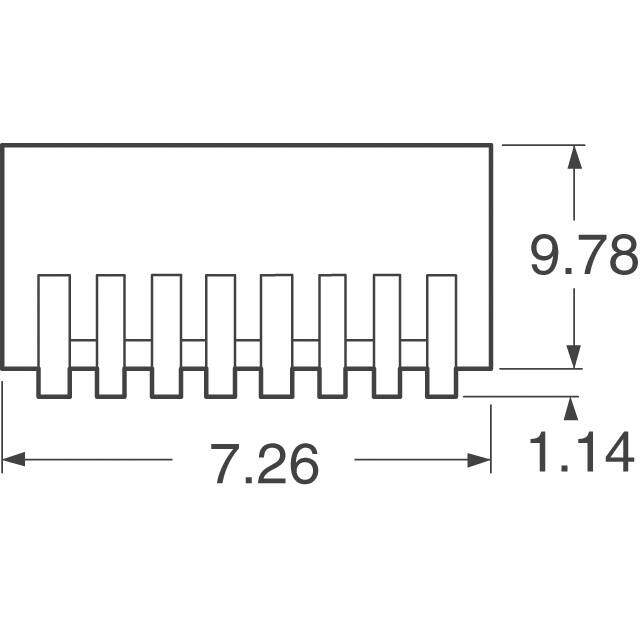

Dimensions
Length 0.286 7.26mm
Body Height 7.9mm
Height Above Board 0.359 9.12mm
Compliance
RoHS Status RoHS Compliant
