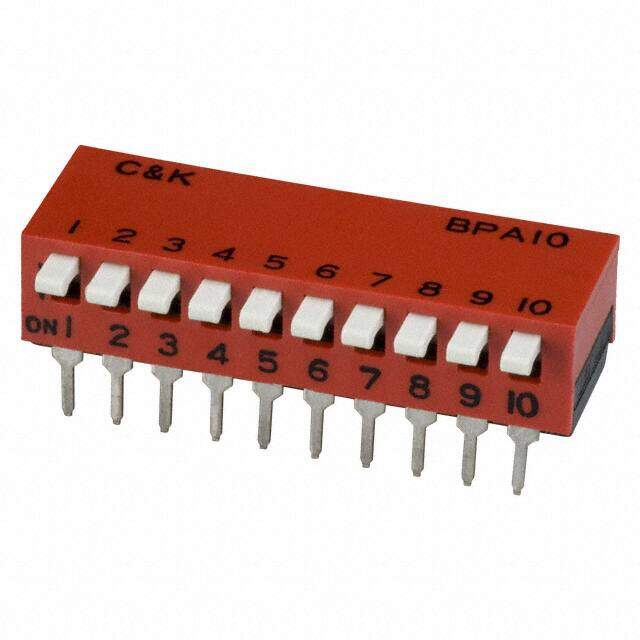

BPA10K
RoHS
/
Package DIP
Category Switches / DIP Switches
Description
SWITCH PIANO DIP SPST 100MA 5V
PDF
/
Buying Options
Total Price: USD $4.38
Unit Price: USD $4.381147
≥1 USD $4.381147
≥195 USD $1.748783
≥495 USD $1.689702
≥1005 USD $1.660819
Inventory: 7745
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Dimensions
Height Above Board 0.287 7.30mm
Actuator Length 2.1mm
Length 1.075 27.31mm
Technical
Actuator Level Raised
Washable Yes
Mechanical Life 1,000 Cycles
Max Voltage Rating (DC) 24V
Throw Configuration SPST
Number of Poles 10
Electrical Life 1,000 Cycles
Contact Resistance 50mOhm
Circuit SPST
Actuator Type Piano
Termination Style PC Pin
Contact Finish Tin
Current Rating 100mA
Terminal Pitch 2.54mm
Orientation Straight
Pitch 0.100 2.54mm Full
Current Rating (Amps) 100mA
Voltage - Rated 5VDC
Color Black
Min Operating Temperature -20°C
Max Operating Temperature 85°C
Number of Positions 10
Termination PC Pins
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series BPA
Published 2003
Packaging Tube
Operating Temperature -20°C~85°C
Physical
Actuator Material Polybutylene
Body Material Polyphenylene Sulfide (PPS)
Package / Case DIP
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Contact Material Phosphor Bronze
