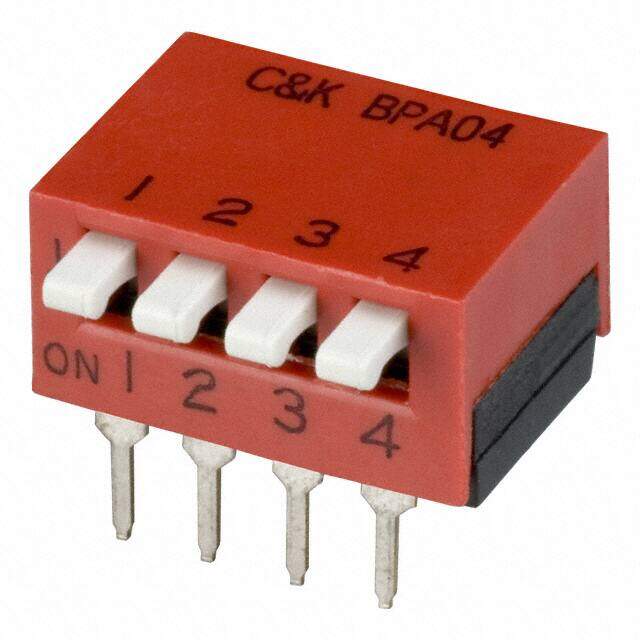

BPA04K
RoHS
/
Package DIP
Category Switches / DIP Switches
Description
SWITCH PIANO DIP SPST 100MA 5V
PDF
/
Buying Options
Total Price: USD $2.82
Unit Price: USD $2.816171
≥1 USD $2.816171
≥210 USD $1.123842
≥490 USD $1.087081
≥1015 USD $1.068701
Inventory: 7613
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Dimensions
Height Above Board 0.287 7.30mm
Actuator Length 2.1mm
Length 0.476 12.09mm
Technical
Actuator Level Raised
Washable Yes
Mechanical Life 1,000 Cycles
Max Voltage Rating (DC) 24V
Throw Configuration SPST
Electrical Life 1,000 Cycles
Contact Resistance 50mOhm
Circuit SPST
Actuator Type Piano
Termination Style PC Pin
Contact Finish Tin
Current Rating 100mA
Terminal Pitch 2.54mm
Orientation Straight
Pitch 0.100 2.54mm Full
Current Rating (Amps) 100mA
Voltage - Rated 5VDC
Min Operating Temperature -20°C
Max Operating Temperature 85°C
Number of Positions 4
Termination PCB
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series BPA
Published 2003
Packaging Tube
Operating Temperature -20°C~85°C
Physical
Actuator Material Polybutylene
Body Material Polyphenylene Sulfide (PPS)
Package / Case DIP
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Contact Material Phosphor Bronze
