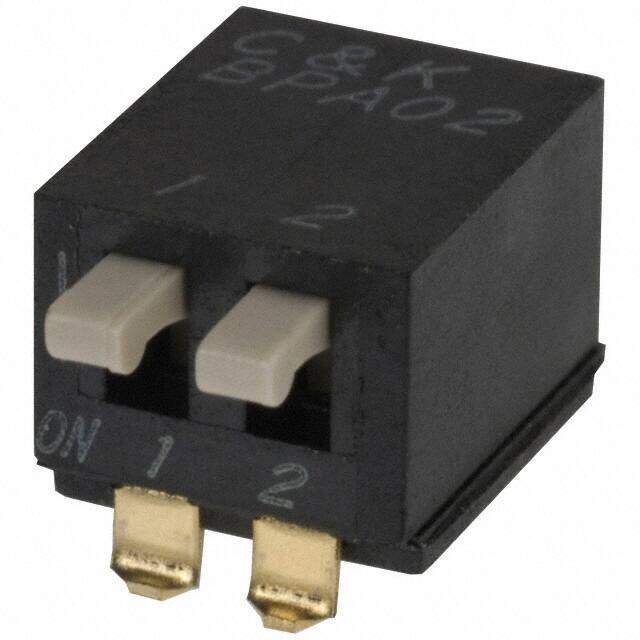

BPA02SB
RoHS
RoHS compliant
RoHS compliantPackage DIP
Category Switches / DIP Switches
Description
Switch DIP OFF ON SPST 2 Piano 0.1A 24VDC Gull Wing 1000Cycle 2.54mm SMD Tube
PDF
/
Buying Options
Total Price: USD $1.17
Unit Price: USD $1.1704
≥1 USD $1.1704
≥10 USD $1.14136
≥100 USD $0.96785
≥500 USD $0.90215
≥1000 USD $0.8272
Inventory: 7571
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Beryllium Copper
Actuator Material Polyamide
Body Material Polyphenylene Sulfide (PPS)
Package / Case DIP
Mounting Type Surface Mount, Right Angle
Mount Surface Mount
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height Above Board 0.274 6.95mm
Actuator Length 2.1mm
Length 0.276 7.00mm
Technical
Actuator Level Raised
Washable Yes
Mechanical Life 1,000 Cycles
Max Voltage Rating (DC) 24V
Electrical Life 1,000 Cycles
Max Current Rating 100mA
Contact Resistance 50mOhm
Circuit SPST
Actuator Type Piano
Termination Style Gull Wing
Contact Finish Gold
Current Rating 100mA
Depth 10.25mm
Terminal Pitch 2.54mm
Orientation Straight
Pitch 0.100 2.54mm Full
Voltage - Rated DC 24V
Voltage - Rated 5VDC
Number of Positions 2
Termination Gull Wing
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series BPA
Published 2011
Packaging Tube
Operating Temperature -20°C~85°C
