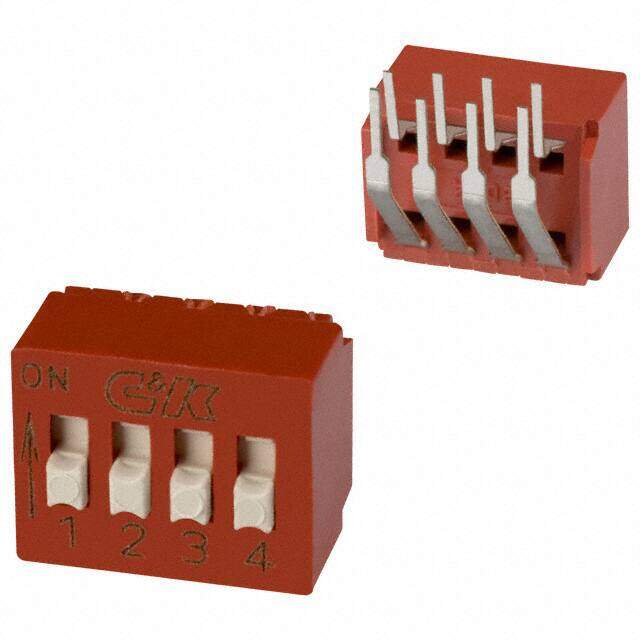

BD04AV
RoHS
RoHS compliant
RoHS compliantPackage DIP
Category Switches / DIP Switches
Description
SWITCH SLIDE DIP SPST 100MA 5V
PDF
/
Buying Options
Total Price: USD $2.16
Unit Price: USD $2.156
≥1 USD $2.156
≥10 USD $2.06536
≥100 USD $1.885506
≥500 USD $1.634072
≥1000 USD $1.580718
Inventory: 1188
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Contact Material Phosphor Bronze
Contact Plating Gold, Silver, Tin
Mount Through Hole
Mounting Type Through Hole, Right Angle
Package / Case DIP
Body Material Polybutylene Terephthalate (PBT), Glass Filled
Actuator Material Glass, Nylon
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Published 2001
Series BD
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pins
Number of Positions 4
Voltage - Rated 5VDC
Voltage - Rated DC 25V
Pitch 0.100 2.54mm Full
Orientation Right Angle
Terminal Pitch 2.54mm
Depth 11.69mm
Current Rating 100mA
Contact Finish Gold
Termination Style PC Pin
Actuator Type Slide (Standard)
Circuit SPST
Max Current Rating 100mA
Electrical Life 10,000 Cycles
Max Voltage Rating (DC) 25V
Mechanical Life 10,000 Cycles
Contact Current Rating 100mA
Washable Yes
Actuator Level Raised
Dimensions
Height 9.65mm
Length 0.480 12.19mm
Width 7.62mm
Actuator Length 900μm
Height Above Board 0.380 9.64mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
