BZG05C39-E3-TR3
RoHS
RoHS compliant

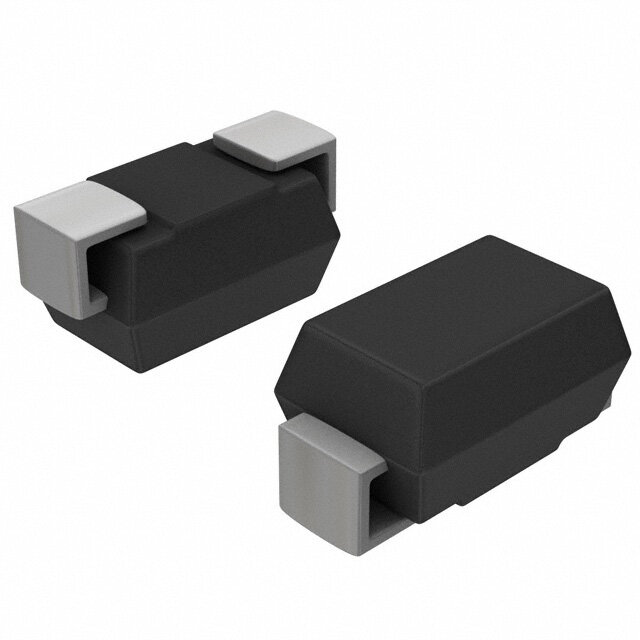

RoHS compliantPackage DO-214AC, SMA
Category Discrete Semiconductor Products / Diodes - Zener - Single
Description
Tape & Reel (TR) ±5% Surface Mount ZENER DIODE Zener Diode 1.2V @ 200mA 500nA @ 30V 1.25W 39V
PDF
/
Inventory: 6868
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Contact Plating Tin
Mount Surface Mount
Mounting Type Surface Mount
Package / Case DO-214AC, SMA
Number of Pins 2
Diode Element Material SILICON
Technical
Operating Temperature 150°C
Packaging Tape & Reel (TR)
Published 2016
Tolerance ±5%
JESD-609 Code e3
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Additional Feature HIGH RELIABILITY
HTS Code 8541.10.00.50
Max Power Dissipation 1.25W
Technology ZENER
Terminal Position DUAL
Terminal Form C BEND
Peak Reflow Temperature (Cel) 260
Time@Peak Reflow Temperature-Max (s) 30
Number of Elements 1
Polarity UNIDIRECTIONAL
Configuration SINGLE
Impedance 50Ohm
Diode Type ZENER DIODE
Current - Reverse Leakage @ Vr 500nA @ 30V
Voltage - Forward (Vf) (Max) @ If 1.2V @ 200mA
Max Reverse Leakage Current 500nA
Impedance-Max 50Ohm
Test Current 6mA
Reference Voltage 39V
Zener Voltage 39V
Voltage Tol-Max 5.13%
Compliance
RoHS Status ROHS3 Compliant
