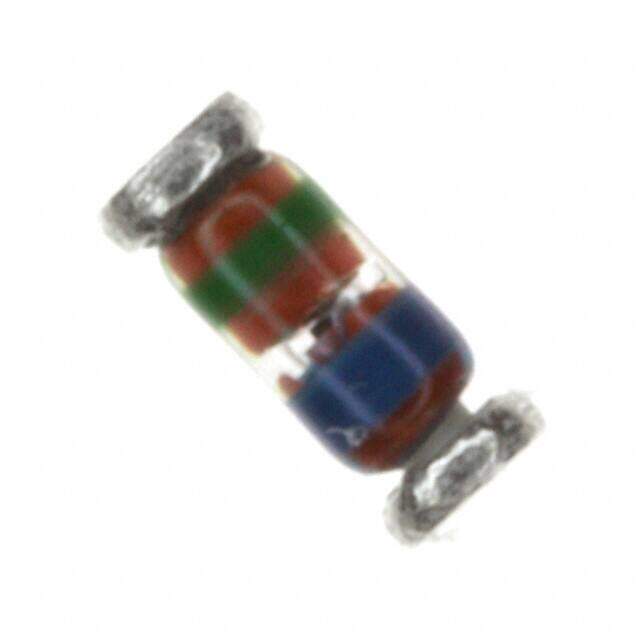

FLZ8V2B image
Favorite
FLZ8V2B image
Favorite
RoHS
RoHS RoHS compliant
Package DO-213AC, MINI-MELF, SOD-80
Category Discrete Semiconductor Products / Diodes - Zener - Single
Description ZENER DIODE
PDF
/
Inventory: 5790
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Technical

Working Test Current 20mA
Voltage Tol-Max 2.57%
Voltage - Zener (Nom) (Vz) 8V
Reference Voltage 7.99V
Impedance-Max 6.6Ohm
Power - Max 500mW
Case Connection ISOLATED
Voltage - Forward (Vf) (Max) @ If 1.2V @ 200mA
Current - Reverse Leakage @ Vr 300nA @ 5V
Diode Type ZENER DIODE
Power Dissipation-Max 0.5W
Configuration SINGLE
Polarity UNIDIRECTIONAL
Number of Elements 1
Qualification Status COMMERCIAL
JESD-30 Code O-LELF-R2
Pin Count 2
Terminal Form WRAP AROUND
Terminal Position END
Technology ZENER
Terminal Finish NOT SPECIFIED
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Tolerance ±3%
Packaging Tape & Reel (TR)
Operating Temperature -65°C~175°C

Physical

Diode Element Material SILICON
Surface Mount YES
Package / Case DO-213AC, MINI-MELF, SOD-80
Mounting Type Surface Mount
