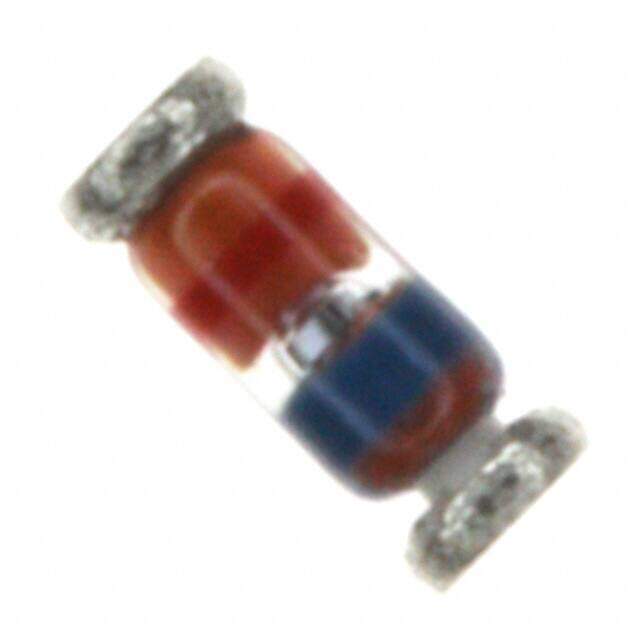

FLZ39VA
RoHS
RoHS compliant
RoHS compliantPackage DO-213AC, MINI-MELF, SOD-80
Category Discrete Semiconductor Products / Diodes - Zener - Single
Description
ZENER DIODE
PDF
/
Buying Options
Total Price: USD $0.03
Unit Price: USD $0.0264
≥1 USD $0.0264
Inventory: 45476
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Working Test Current 5mA
Voltage Tol-Max 2.52%
Voltage - Zener (Nom) (Vz) 35.6V
Reference Voltage 35.57V
Impedance-Max 72Ohm
Power - Max 500mW
Case Connection ISOLATED
Voltage - Forward (Vf) (Max) @ If 1.2V @ 200mA
Current - Reverse Leakage @ Vr 133nA @ 30V
Diode Type ZENER DIODE
Power Dissipation-Max 0.5W
Configuration SINGLE
Polarity UNIDIRECTIONAL
Number of Elements 1
Qualification Status COMMERCIAL
JESD-30 Code O-LELF-R2
Pin Count 2
Terminal Form WRAP AROUND
Terminal Position END
Technology ZENER
Terminal Finish NOT SPECIFIED
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Tolerance ±3%
Packaging Tape & Reel (TR)
Operating Temperature -65°C~175°C
Physical
Diode Element Material SILICON
Surface Mount YES
Package / Case DO-213AC, MINI-MELF, SOD-80
Mounting Type Surface Mount
