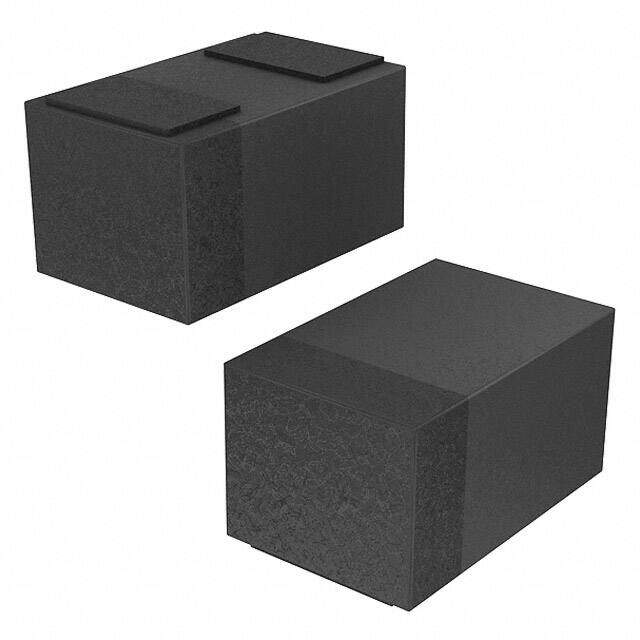

CZRQR52C15-HF
RoHS
RoHS compliant
RoHS compliantPackage 0402 (1006 Metric)
Category Discrete Semiconductor Products / Diodes - Zener - Single
Description
DIODE ZENER 15V 125MW 0402
PDF
/
Buying Options
Total Price: USD $0.28
Unit Price: USD $0.282769
≥1 USD $0.282769
≥10 USD $0.266765
≥100 USD $0.251664
≥500 USD $0.237423
≥1000 USD $0.223974
Inventory: 8976
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 0402 (1006 Metric)
Diode Element Material SILICON
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2015
Tolerance ±5%
JESD-609 Code e4
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Gold (Au)
HTS Code 8541.10.00.50
Max Power Dissipation 125mW
Technology ZENER
Terminal Position BOTTOM
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) 260
Time@Peak Reflow Temperature-Max (s) 30
Reference Standard IEC-61000-4-2
JESD-30 Code R-PBCC-N2
Number of Elements 1
Polarity UNIDIRECTIONAL
Impedance 30Ohm
Element Configuration Single
Diode Type ZENER DIODE
Current - Reverse Leakage @ Vr 100nA @ 11V
Voltage - Forward (Vf) (Max) @ If 900mV @ 10mA
Impedance-Max 30Ohm
Reference Voltage 15V
Voltage - Zener (Nom) (Vz) 15V
Zener Voltage 15V
Voltage Tol-Max 5%
Working Test Current 5mA
Compliance
RoHS Status ROHS3 Compliant
