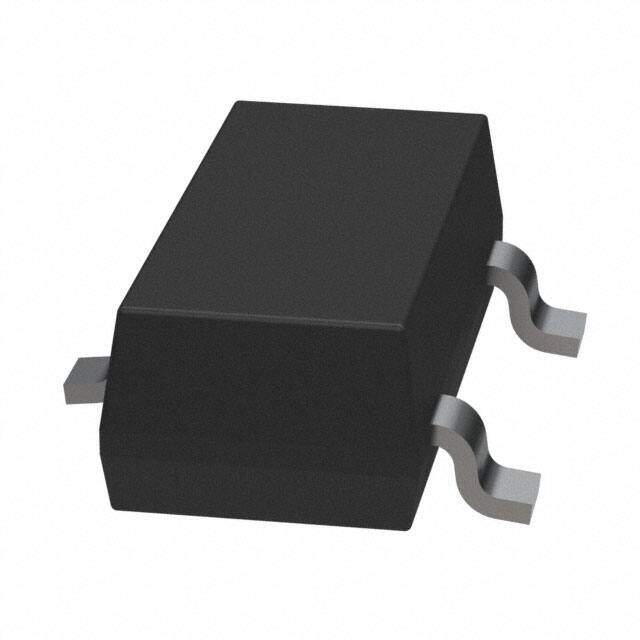

SMV1413-004LF
RoHS
RoHS compliant
RoHS compliantPackage SOT-23
Category Discrete Semiconductor Products / Diodes - Variable Capacitance (Varicaps, Varactors)
Description
Varactor Diodes Ls=1.5nH SOT-23 Common Cathode
PDF
/
Buying Options
Total Price: USD $0.79
Unit Price: USD $0.792
≥1 USD $0.792
Inventory: 1200
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Package / Case SOT-23
Surface Mount YES
Diode Element Material SILICON
Technical
Packaging Cut Tape (CT)
Published 2011
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
ECCN Code EAR99
Terminal Finish Tin (Sn)
Additional Feature LOW NOISE
HTS Code 8541.10.00.80
Subcategory Varactors
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Time@Peak Reflow Temperature-Max (s) 40
Pin Count 3
JESD-30 Code R-PDSO-G3
Qualification Status Not Qualified
Number of Elements 2
Configuration COMMON CATHODE, 2 ELEMENTS
Power Dissipation-Max 0.25W
Diode Type VARIABLE CAPACITANCE DIODE
Rep Pk Reverse Voltage-Max 30V
Breakdown Voltage-Min 30V
Frequency Band S B
Diode Capacitance-Nom 7.4pF
Quality Factor-Min 2400
Variable Capacitance Diode Classification ABRUPT
Diode Capacitance Ratio-Min 4.2
Compliance
RoHS Status ROHS3 Compliant
