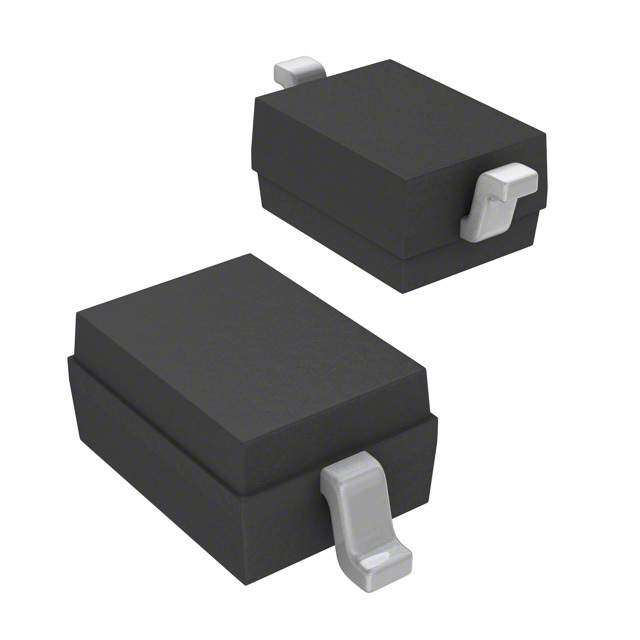

SMV1231-011LF image
Favorite
SMV1231-011LF image
Favorite
RoHS
/
Package /
Category Discrete Semiconductor Products / Diodes - Variable Capacitance (Varicaps, Varactors)
Description
PDF
/
Buying Options
Total Price: USD $0.4
Unit Price: USD $0.4028
≥1 USD $0.4028
≥10 USD $0.3306
≥100 USD $0.32015
≥500 USD $0.31065
≥1000 USD $0.3002
Inventory: 437830
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No

Technical

Diode Capacitance Ratio-Min 1.5
Variable Capacitance Diode Classification HYPERABRUPT
Quality Factor-Min 1500
Diode Capacitance-Nom 1.575pF
Frequency Band S B
Breakdown Voltage-Min 15V
Rep Pk Reverse Voltage-Max 15V
Diode Type VARIABLE CAPACITANCE DIODE
Element Configuration Single
Number of Elements 1
Pin Count 2
Time@Peak Reflow Temperature-Max (s) 40
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Subcategory Varactors
HTS Code 8541.10.00.80
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Published 2009

Physical

Diode Element Material SILICON
Number of Pins 2
Mount Surface Mount
