BYV25G-600,127
RoHS
RoHS compliant

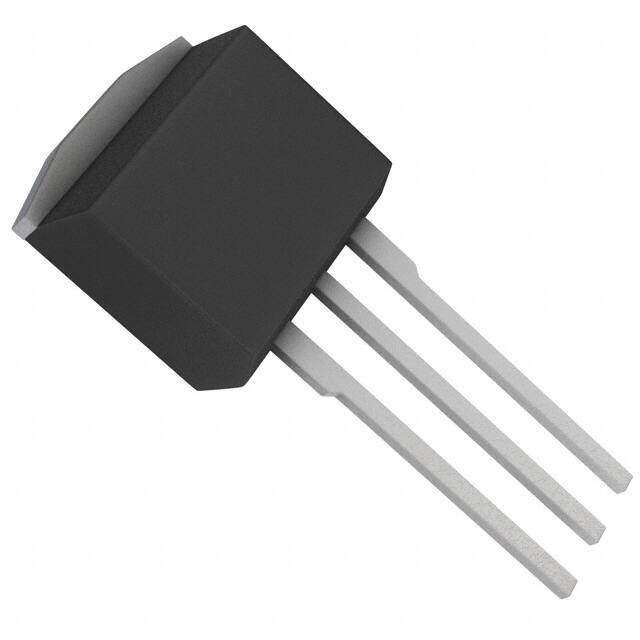

RoHS compliantPackage TO-262-3 Long Leads, I2Pak, TO-262AA
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE GEN PURP 600V 5A I2PAK
PDF
/
Buying Options
Total Price: USD $0.38
Unit Price: USD $0.3784
≥1 USD $0.3784
Inventory: 1497
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Reverse Current-Max 50μA
Non-rep Pk Forward Current-Max 66A
Rep Pk Reverse Voltage-Max 600V
Reverse Recovery Time 60ns
Number of Phases 1
Current - Average Rectified (Io) 5A
Voltage - DC Reverse (Vr) (Max) 600V
Application ULTRA FAST SOFT RECOVERY
Operating Temperature - Junction 150°C Max
Case Connection CATHODE
Voltage - Forward (Vf) (Max) @ If 1.3V @ 5A
Current - Reverse Leakage @ Vr 50μA @ 600V
Diode Type Standard
Speed Fast Recovery =< 500ns, > 200mA (Io)
Configuration SINGLE
Number of Elements 1
Operating Temperature (Max) 150°C
JESD-30 Code R-PSIP-T3
Reference Standard IEC-60134
Base Part Number BYV25-600
Reach Compliance Code not_compliant
Terminal Position SINGLE
Terminal Finish Tin (Sn)
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Packaging Tube
Physical
Diode Element Material SILICON
Surface Mount NO
Package / Case TO-262-3 Long Leads, I2Pak, TO-262AA
Mounting Type Through Hole
