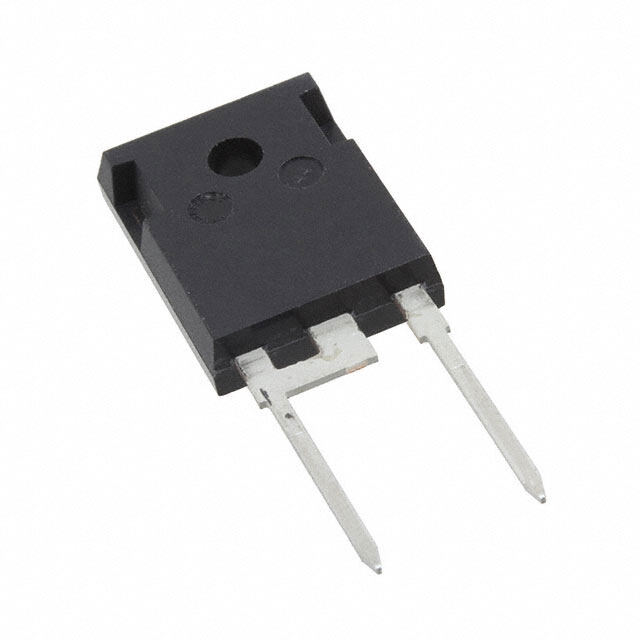

BYC30W-600PQ
RoHS
RoHS compliant
RoHS compliantPackage TO-247-2
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE GEN PURP 600V 30A TO247-2
PDF
/
Buying Options
Total Price: USD $2.16
Unit Price: USD $2.1648
≥1 USD $2.1648
≥10 USD $1.73771
≥100 USD $1.42985
≥500 USD $1.209877
≥1000 USD $1.026564
≥3000 USD $0.975234
Inventory: 1104
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Through Hole
Package / Case TO-247-2
Surface Mount NO
Diode Element Material SILICON
Technical
Packaging Tube
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Additional Feature LOW LEAKAGE CURRENT
Terminal Position SINGLE
Reference Standard IEC-60134
JESD-30 Code R-PSFM-T2
Operating Temperature (Max) 175°C
Number of Elements 1
Configuration SINGLE
Speed Fast Recovery =< 500ns, > 200mA (Io)
Diode Type Standard
Current - Reverse Leakage @ Vr 10μA @ 600V
Voltage - Forward (Vf) (Max) @ If 2.75V @ 30A
Case Connection CATHODE
Operating Temperature - Junction 175°C Max
Application HYPER FAST RECOVERY POWER
Voltage - DC Reverse (Vr) (Max) 600V
Current - Average Rectified (Io) 30A
Number of Phases 1
Reverse Recovery Time 22ns
Rep Pk Reverse Voltage-Max 600V
Non-rep Pk Forward Current-Max 300A
Reverse Current-Max 10μA
Compliance
RoHS Status RoHS Compliant
