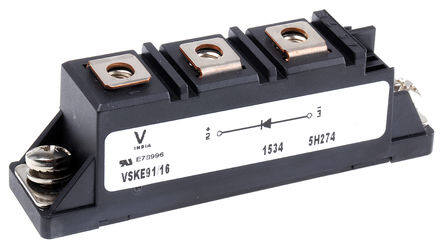

VS-VSKE91/16
RoHS
RoHS compliant
RoHS compliantPackage ADD-A-PAK (3)
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
SCR Modules 1600 Volt 100 Amp 2115 Amp IFSM
PDF
/
Buying Options
Total Price: USD $32.49
Unit Price: USD $32.4896
≥1 USD $32.4896
≥10 USD $28.952
≥100 USD $25.412728
Inventory: 111
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Chassis Mount, Screw
Mounting Type Chassis Mount
Package / Case ADD-A-PAK (3)
Number of Pins 2
Weight 110.000005g
Diode Element Material SILICON
Technical
Packaging Bulk
Published 2016
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
ECCN Code EAR99
Max Operating Temperature 150°C
Min Operating Temperature -40°C
Additional Feature UL RECOGNIZED
HTS Code 8541.10.00.80
Terminal Position UPPER
Terminal Form UNSPECIFIED
Current Rating 100A
JESD-30 Code R-PUFM-X3
Number of Elements 1
Element Configuration Single
Speed Standard Recovery >500ns, > 200mA (Io)
Diode Type Standard
Current - Reverse Leakage @ Vr 10mA @ 1600V
Case Connection ISOLATED
Forward Current 100A
Operating Temperature - Junction -40°C~150°C
Application HIGH VOLTAGE POWER
Circuit Type Diodes
Voltage - DC Reverse (Vr) (Max) 1600V
Forward Voltage 1.55V
Max Reverse Voltage (DC) 1.6kV
Average Rectified Current 100A
Number of Phases 1
Peak Reverse Current 10mA
Max Repetitive Reverse Voltage (Vrrm) 1.6kV
RMS Current (Irms) 157A
Peak Non-Repetitive Surge Current 2.115kA
Max Forward Surge Current (Ifsm) 2.115kA
Dimensions
Height 35mm
Length 92mm
Width 22.6mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
