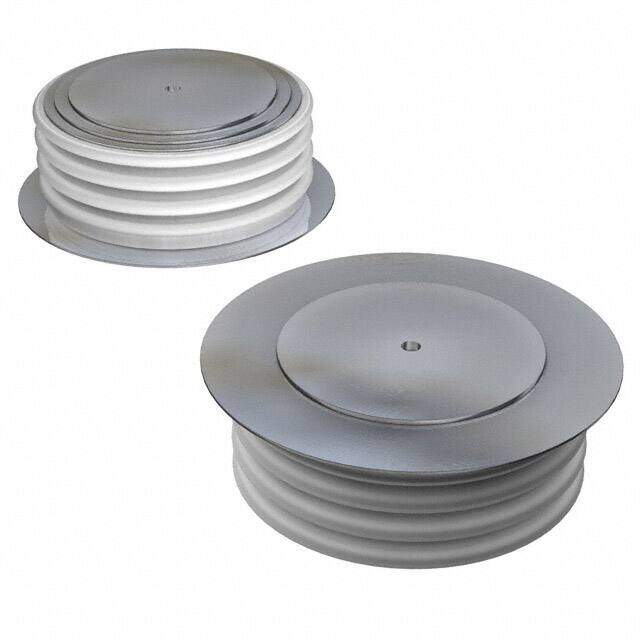

VS-SD853C45S50K
RoHS
RoHS compliant
RoHS compliantPackage DO-200AC, K-PUK
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE MODULE 4.5KV 990A DO200AC
PDF
/
Buying Options
Total Price: USD $636.94
Unit Price: USD $636.938993
≥1 USD $636.938993
≥200 USD $254.143305
≥500 USD $245.651467
≥1000 USD $241.454126
Inventory: 4858
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Technical
Recovery Time 5 μs
Reverse Voltage 4.5kV
Peak Non-Repetitive Surge Current 19.9kA
Max Repetitive Reverse Voltage (Vrrm) 4.5kV
Peak Reverse Current 100mA
Reverse Recovery Time 5 μs
Number of Phases 1
Average Rectified Current 990A
Max Reverse Voltage (DC) 4.5kV
Forward Voltage 2.9V
Voltage - DC Reverse (Vr) (Max) 4500V
Application HIGH VOLTAGE HIGH POWER FAST SOFT RECOVERY
Max Surge Current 19.9kA
Forward Current 990A
Voltage - Forward (Vf) (Max) @ If 2.9V @ 2000A
Current - Reverse Leakage @ Vr 100mA @ 4500V
Diode Type Standard
Speed Standard Recovery >500ns, > 200mA (Io)
Element Configuration Single
Number of Elements 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form NO LEAD
Terminal Position END
HTS Code 8541.10.00.80
Additional Feature FREE WHEELING DIODE, SNUBBER DIODE
Min Operating Temperature -40°C
Max Operating Temperature 125°C
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Published 2007
Packaging Bulk
Physical
Diode Element Material SILICON
Number of Pins 2
Package / Case DO-200AC, K-PUK
Mounting Type Clamp On
Mount Clamp, Screw
Supply Chain
Factory Lead Time 12 Weeks
