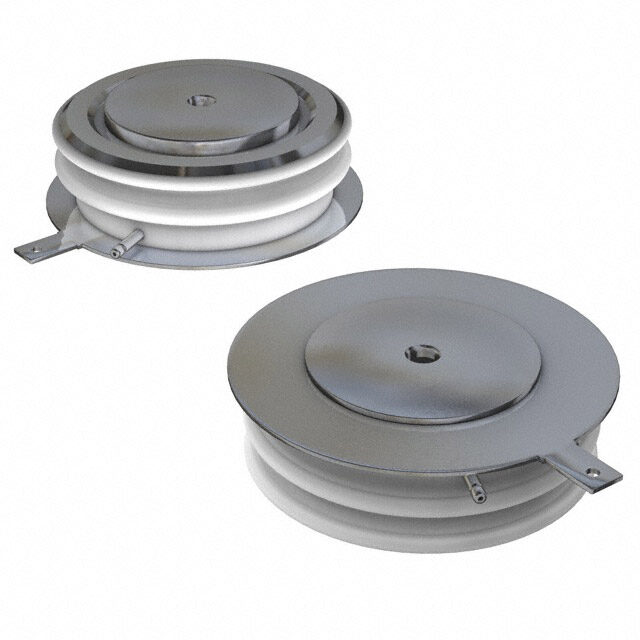

VS-SD303C20S20C
RoHS
RoHS compliant
RoHS compliantPackage DO-200AA, A-PUK
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE GEN PURP 2KV 350A DO200AA
PDF
/
Buying Options
Total Price: USD $184.61
Unit Price: USD $184.606869
≥1 USD $184.606869
≥204 USD $73.660255
≥504 USD $71.198567
≥996 USD $69.982822
Inventory: 9177
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Reverse Voltage 2kV
Non-rep Pk Forward Current-Max 6040A
Peak Reverse Current 35mA
Reverse Recovery Time 2 μs
Number of Phases 1
Average Rectified Current 350A
Max Reverse Voltage (DC) 2kV
Voltage - DC Reverse (Vr) (Max) 2000V
Application HIGH VOLTAGE HIGH POWER FAST SOFT RECOVERY
Max Surge Current 6.04kA
Voltage - Forward (Vf) (Max) @ If 2.26V @ 1100A
Current - Reverse Leakage @ Vr 35mA @ 2000V
Diode Type Standard
Speed Standard Recovery >500ns, > 200mA (Io)
Element Configuration Single
Number of Elements 1
JESD-30 Code O-CEDB-N2
Base Part Number SD303C*C
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Reach Compliance Code unknown
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form NO LEAD
Terminal Position END
HTS Code 8541.10.00.80
Additional Feature FREE WHEELING DIODE, SNUBBER DIODE
Min Operating Temperature -40°C
Max Operating Temperature 125°C
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2007
Packaging Bulk
Physical
Diode Element Material SILICON
Package / Case DO-200AA, A-PUK
Mounting Type Clamp On
Mount Chassis Mount
Supply Chain
Factory Lead Time 12 Weeks
