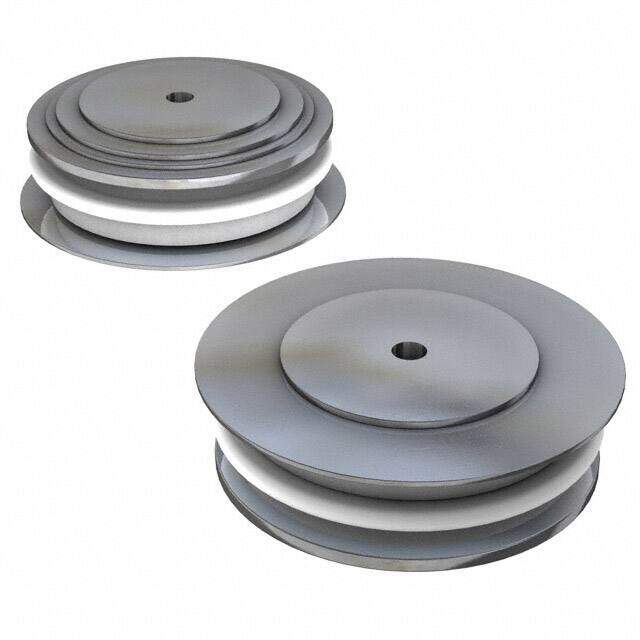

VS-SD1100C32C
RoHS
RoHS compliant
RoHS compliantPackage DO-200AA, A-PUK
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE GEN PURP 3.2KV 1100A B-43
PDF
/
Buying Options
Total Price: USD $207.86
Unit Price: USD $207.857015
≥1 USD $207.857015
≥204 USD $82.937206
≥504 USD $80.165674
≥996 USD $78.796319
Inventory: 3946
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Reverse Voltage 3.2kV
Peak Reverse Current 15mA
Number of Phases 1
Average Rectified Current 1.1kA
Max Reverse Voltage (DC) 3.2kV
Current - Average Rectified (Io) 1100A
Voltage - DC Reverse (Vr) (Max) 3200V
Application HIGH VOLTAGE HIGH POWER
Output Current-Max 1100A
Max Surge Current 11kA
Forward Current 1.1kA
Voltage - Forward (Vf) (Max) @ If 1.44V @ 1500A
Current - Reverse Leakage @ Vr 35mA @ 3200V
Diode Type Standard
Speed Standard Recovery >500ns, > 200mA (Io)
Element Configuration Single
Number of Elements 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Current Rating 1.1kA
Reach Compliance Code unknown
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form NO LEAD
Terminal Position END
HTS Code 8541.10.00.80
Min Operating Temperature -40°C
Max Operating Temperature 150°C
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2007
Packaging Bulk
Physical
Diode Element Material SILICON
Number of Pins 2
Package / Case DO-200AA, A-PUK
Mounting Type Stud Mount
Mount Stud
Supply Chain
Factory Lead Time 12 Weeks
