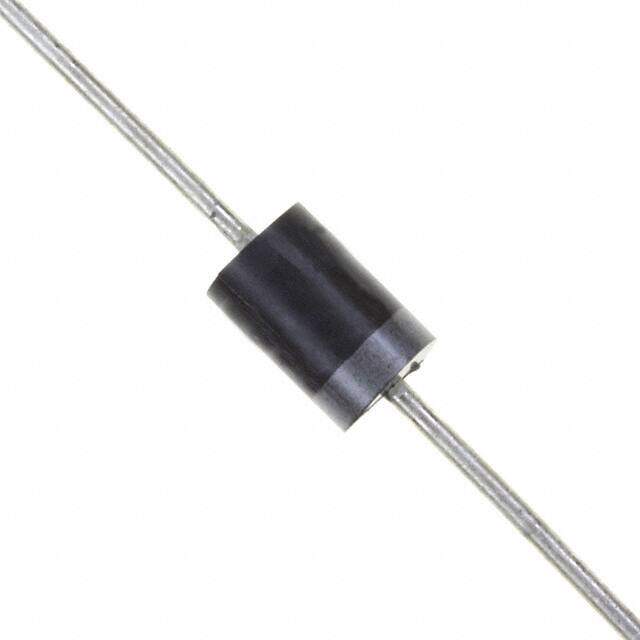

VS-90SQ035
RoHS
RoHS compliant
RoHS compliantPackage DO-204AR, Axial
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
Schottky Diodes & Rectifiers 9.0 Amp 35 Volt
PDF
/
Inventory: 5259
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Radiation Hardening No
Dimensions
Width 6.35mm
Length 9.52mm
Height 6.35mm
Technical
Natural Thermal Resistance 44 °C/W
Max Forward Surge Current (Ifsm) 2.15kA
Peak Non-Repetitive Surge Current 2.15kA
Max Repetitive Reverse Voltage (Vrrm) 35V
Peak Reverse Current 1.75mA
Number of Phases 1
Average Rectified Current 9A
Max Reverse Voltage (DC) 35V
Forward Voltage 480mV
Application GENERAL PURPOSE
Output Current-Max 9A
Operating Temperature - Junction -55°C~150°C
Forward Current 9A
Case Connection ISOLATED
Voltage - Forward (Vf) (Max) @ If 480mV @ 9A
Current - Reverse Leakage @ Vr 1.75mA @ 35V
Diode Type Schottky
Speed Fast Recovery =< 500ns, > 200mA (Io)
Element Configuration Single
Number of Elements 1
Subcategory Rectifier Diodes
Additional Feature HIGH RELIABILITY, FREEWHEELING DIODE
Min Operating Temperature -55°C
Max Operating Temperature 150°C
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Published 2005
Packaging Bulk
Physical
Diode Element Material SILICON
Number of Pins 2
Package / Case DO-204AR, Axial
Mounting Type Through Hole
Mount Through Hole
