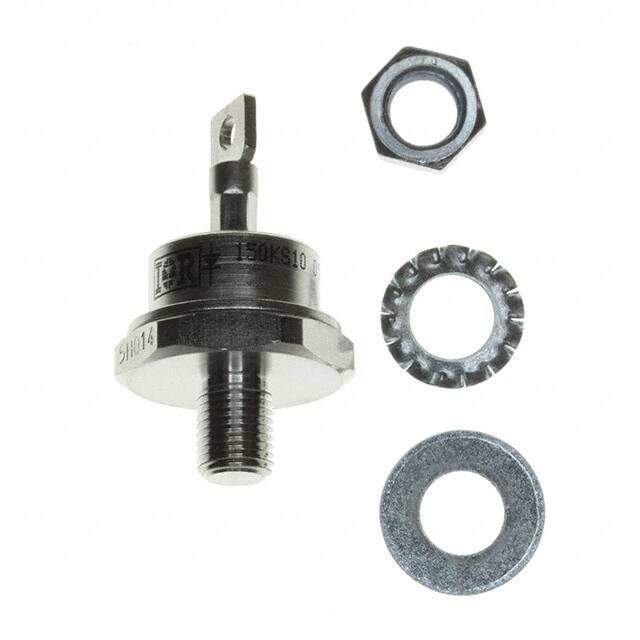

VS-150KS40
RoHS
RoHS compliant
RoHS compliantPackage B-42
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE GEN PURP 400V 150A B42
PDF
/
Inventory: 4108
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Technical
Natural Thermal Resistance 0.1 °C/W
Reverse Voltage 400V
Max Repetitive Reverse Voltage (Vrrm) 400V
Peak Reverse Current 35mA
Number of Phases 1
Average Rectified Current 150A
Max Reverse Voltage (DC) 400V
Forward Voltage 1.33V
Application GENERAL PURPOSE
Max Surge Current 3.74kA
Operating Temperature - Junction -40°C~200°C
Forward Current 150A
Case Connection CATHODE
Voltage - Forward (Vf) (Max) @ If 1.33V @ 471A
Current - Reverse Leakage @ Vr 35mA @ 400V
Diode Type Standard
Speed Standard Recovery >500ns, > 200mA (Io)
Element Configuration Single
Number of Elements 1
JESD-30 Code O-MUPM-D1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form SOLDER LUG
Terminal Position UPPER
HTS Code 8541.10.00.80
Additional Feature FREE WHEELING DIODE
Min Operating Temperature -40°C
Max Operating Temperature 200°C
ECCN Code EAR99
Number of Terminations 1
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2014
Packaging Bulk
Physical
Diode Element Material SILICON
Number of Pins 42
Package / Case B-42
Mounting Type Chassis, Stud Mount
Mount Chassis, Stud
Supply Chain
Factory Lead Time 13 Weeks
