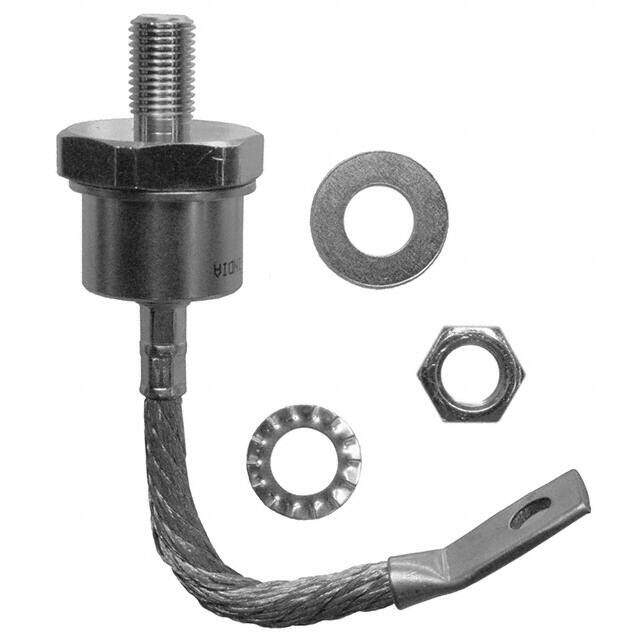

VS-150KR10A
RoHS
RoHS compliant
RoHS compliantPackage DO-205AA, DO-8, Stud
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE GEN PURP 100V 150A DO205AA
PDF
/
Buying Options
Total Price: USD $26.46
Unit Price: USD $26.455293
≥1 USD $26.455293
≥10 USD $24.957825
≥100 USD $23.545118
≥500 USD $22.212376
≥1000 USD $20.95507
Inventory: 1106
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Technical
Natural Thermal Resistance 0.1 °C/W
Reverse Voltage 100V
Peak Non-Repetitive Surge Current 3.74kA
Max Repetitive Reverse Voltage (Vrrm) 100V
Peak Reverse Current 35mA
Number of Phases 1
Average Rectified Current 150A
Max Reverse Voltage (DC) 100V
Application GENERAL PURPOSE
Max Surge Current 3.74kA
Operating Temperature - Junction -40°C~200°C
Forward Current 150A
Voltage - Forward (Vf) (Max) @ If 1.33V @ 471A
Current - Reverse Leakage @ Vr 35mA @ 100V
Diode Type Standard, Reverse Polarity
Speed Standard Recovery >500ns, > 200mA (Io)
Element Configuration Single
Number of Elements 1
JESD-30 Code O-MUPM-H1
Terminal Form HIGH CURRENT CABLE
Terminal Position UPPER
HTS Code 8541.10.00.80
Additional Feature FREE WHEELING DIODE
Min Operating Temperature -40°C
Max Operating Temperature 200°C
Terminal Finish Nickel (Ni)
ECCN Code EAR99
Number of Terminations 1
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2007
Packaging Bulk
Physical
Diode Element Material SILICON
Package / Case DO-205AA, DO-8, Stud
Mounting Type Chassis, Stud Mount
Mount Chassis, Stud
Supply Chain
Factory Lead Time 13 Weeks
