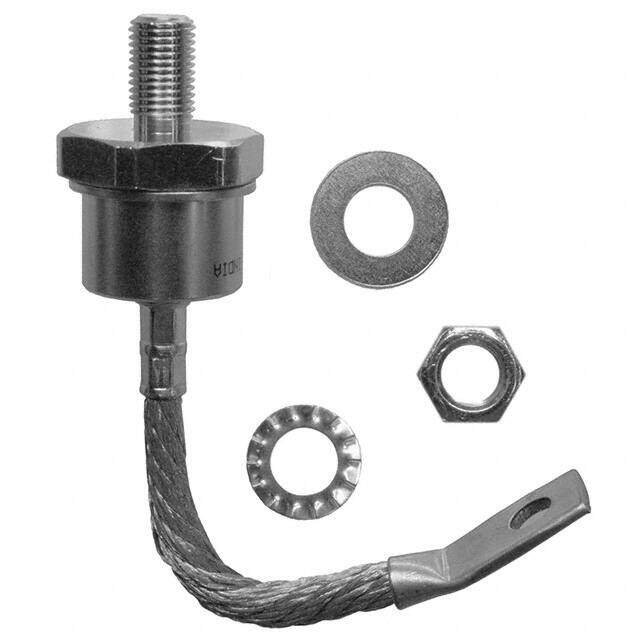

VS-150K30A
RoHS
RoHS compliant
RoHS compliantPackage DO-205AA, DO-8, Stud
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE GEN PURP 300V 150A DO205AA
PDF
/
Buying Options
Total Price: USD $32.39
Unit Price: USD $32.3936
≥1 USD $32.3936
≥10 USD $30.56
≥100 USD $28.83019
Inventory: 683
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mounting Type Chassis, Stud Mount
Package / Case DO-205AA, DO-8, Stud
Surface Mount NO
Diode Element Material SILICON
Technical
Packaging Bulk
Published 2007
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 1
ECCN Code EAR99
Terminal Finish Nickel (Ni)
Additional Feature FREE WHEELING DIODE
HTS Code 8541.10.00.80
Terminal Position UPPER
Terminal Form HIGH CURRENT CABLE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Reach Compliance Code unknown
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code O-MUPM-H1
Operating Temperature (Max) 200°C
Number of Elements 1
Configuration SINGLE
Speed Standard Recovery >500ns, > 200mA (Io)
Diode Type Standard
Current - Reverse Leakage @ Vr 35mA @ 300V
Voltage - Forward (Vf) (Max) @ If 1.33V @ 471A
Case Connection CATHODE
Operating Temperature - Junction -40°C~200°C
Output Current-Max 150A
Application GENERAL PURPOSE
Voltage - DC Reverse (Vr) (Max) 300V
Current - Average Rectified (Io) 150A
Number of Phases 1
Rep Pk Reverse Voltage-Max 300V
Non-rep Pk Forward Current-Max 3740A
Reverse Current-Max 35000μA
Compliance
RoHS Status ROHS3 Compliant
