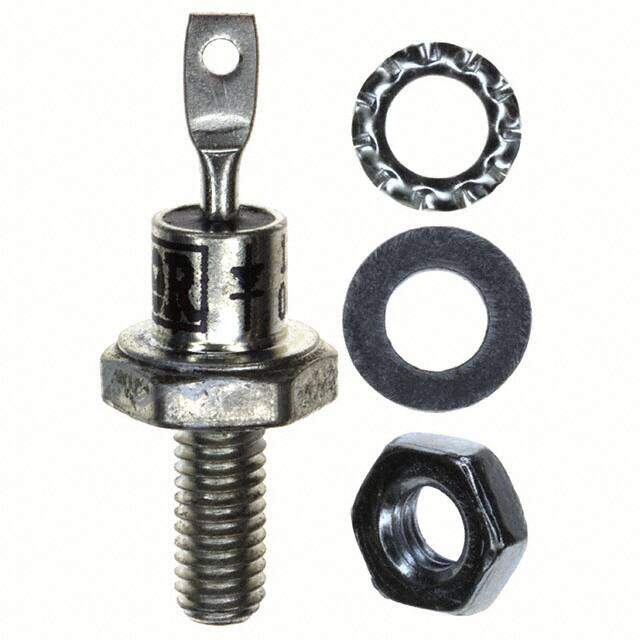

VS-12FL60S02
RoHS
RoHS compliant
RoHS compliantPackage DO-203AA, DO-4, Stud
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
VISHAY VS-12FL60S02 DIODE, CURRENT RECTIFIER, FAST
PDF
/
Buying Options
Total Price: USD $67.56
Unit Price: USD $67.56305
≥1 USD $67.56305
≥10 USD $55.4363
≥100 USD $53.70445
≥500 USD $51.97165
≥1000 USD $50.2398
Inventory: 2847
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mount Chassis, Stud
Mounting Type Chassis, Stud Mount
Package / Case DO-203AA, DO-4, Stud
Number of Pins 2
Diode Element Material SILICON
Technical
Packaging Bulk
Published 2011
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 1
ECCN Code EAR99
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
Max Operating Temperature 150°C
Min Operating Temperature -65°C
Additional Feature FREE WHEELING DIODE
HTS Code 8541.10.00.80
Terminal Position UPPER
Terminal Form SOLDER LUG
Pin Count 1
JESD-30 Code O-MUPM-D1
Number of Elements 1
Element Configuration Single
Speed Fast Recovery =< 500ns, > 200mA (Io)
Diode Type Standard
Current - Reverse Leakage @ Vr 50μA @ 600V
Voltage - Forward (Vf) (Max) @ If 1.4V @ 12A
Case Connection CATHODE
Forward Current 12A
Operating Temperature - Junction -65°C~150°C
Max Surge Current 180A
Forward Voltage 1.4V
Max Reverse Voltage (DC) 600V
Average Rectified Current 12A
Number of Phases 1
Reverse Recovery Time 200 ns
Peak Reverse Current 50μA
Max Repetitive Reverse Voltage (Vrrm) 600V
Peak Non-Repetitive Surge Current 180A
Reverse Voltage 600V
Max Forward Surge Current (Ifsm) 150A
Recovery Time 200 ns
Natural Thermal Resistance 0.5 °C/W
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Alternative Model
