VBT760-E3/8W
RoHS
RoHS compliant

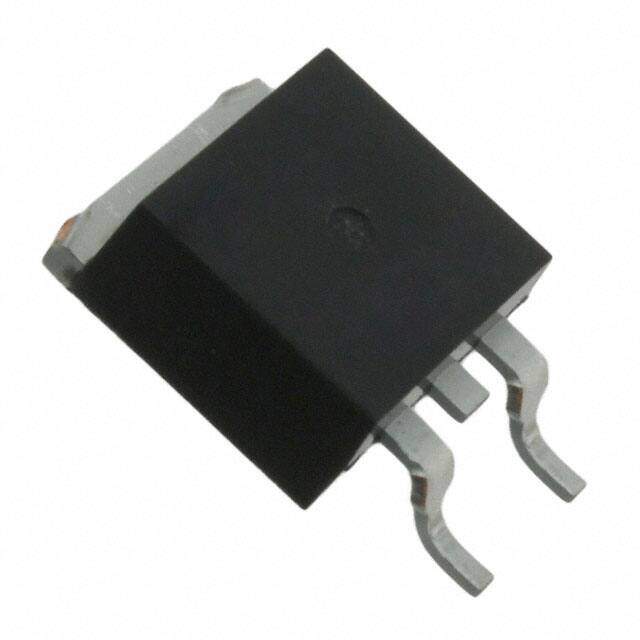

RoHS compliantPackage TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE SCHOTTKY 7.5A 60V TO-263AB
PDF
/
Inventory: 5448
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Case Connection CATHODE
Operating Temperature - Junction -55°C~150°C
Application EFFICIENCY
Voltage - DC Reverse (Vr) (Max) 60V
Max Reverse Voltage (DC) 60V
Average Rectified Current 7.5A
Number of Phases 1
Non-rep Pk Forward Current-Max 100A
Voltage - Forward (Vf) (Max) @ If 800mV @ 7.5A
Current - Reverse Leakage @ Vr 700μA @ 60V
Diode Type Schottky
Speed Fast Recovery =< 500ns, > 200mA (Io)
Configuration SINGLE
Number of Elements 1
Operating Temperature (Max) 150°C
Qualification Status Not Qualified
JESD-30 Code R-PSSO-G2
Pin Count 3
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Reach Compliance Code unknown
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form GULL WING
Terminal Position SINGLE
Subcategory Rectifier Diodes
HTS Code 8541.10.00.80
Additional Feature FREE WHEELING DIODE, LOW POWER LOSS
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Published 2016
Packaging Tape & Reel (TR)
Compliance
RoHS Status ROHS3 Compliant
Physical
Diode Element Material SILICON
Package / Case TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 22 Weeks
