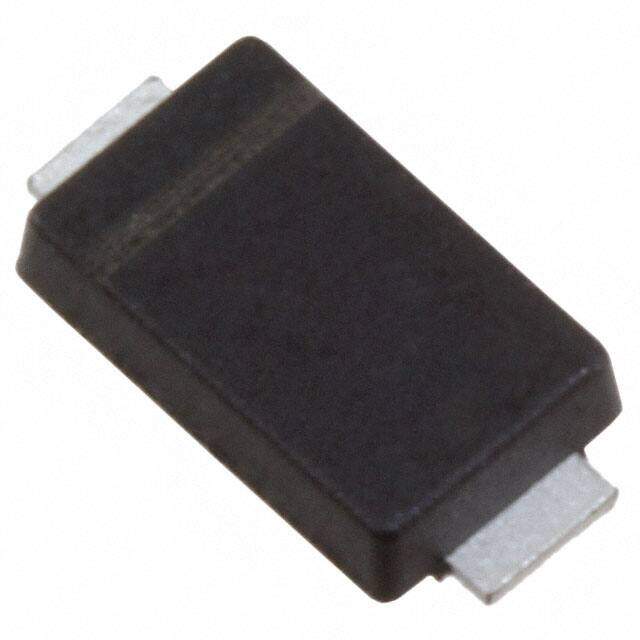

V4PAL45-M3/I
RoHS
RoHS compliant
RoHS compliantPackage DO-221BC, SMA Flat Leads Exposed Pad
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
VISHAY V4PAL45-M3/I Small Signal Schottky Diode, Single, 45 V, 4 A, 570 mV, 80 A, 150 C
PDF
/
Buying Options
Total Price: USD $0.48
Unit Price: USD $0.4752
≥1 USD $0.4752
≥10 USD $0.40392
≥100 USD $0.280808
≥500 USD $0.219226
≥1000 USD $0.178182
≥3000 USD $0.159289
Inventory: 1150
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Technical
Reverse Voltage (DC) 45V
Max Forward Surge Current (Ifsm) 80A
Capacitance @ Vr, F 450pF @ 4V 1MHz
Max Repetitive Reverse Voltage (Vrrm) 45V
Peak Reverse Current 450μA
Number of Phases 1
Average Rectified Current 3A
Max Reverse Voltage (DC) 45V
Forward Voltage 490mV
Current - Average Rectified (Io) 3A DC
Application EFFICIENCY
Output Current-Max 3A
Operating Temperature - Junction -40°C~150°C
Forward Current 4A
Case Connection CATHODE
Voltage - Forward (Vf) (Max) @ If 570mV @ 4A
Current - Reverse Leakage @ Vr 450μA @ 45V
Diode Type Schottky
Speed Fast Recovery =< 500ns, > 200mA (Io)
Element Configuration Single
Number of Elements 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) 260
Terminal Position DUAL
HTS Code 8541.10.00.80
Additional Feature FREE WHEELING DIODE, LOW POWER LOSS
Min Operating Temperature -40°C
Max Operating Temperature 150°C
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Series Automotive, AEC-Q101
Published 2011
Packaging Tape & Reel (TR)
Physical
Diode Element Material SILICON
Weight 32.006612mg
Number of Pins 2
Package / Case DO-221BC, SMA Flat Leads Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
