S8CMHM3/I
RoHS
/

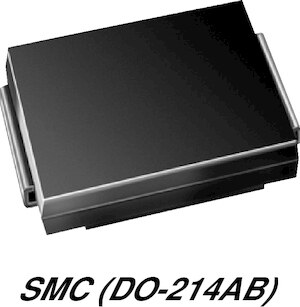

Package DO-214AB, SMC
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE GEN PURP 1KV 8A DO214AB
PDF
/
Buying Options
Total Price: USD $0.8
Unit Price: USD $0.8008
≥1 USD $0.8008
≥10 USD $0.69344
≥100 USD $0.479952
≥500 USD $0.401034
≥1000 USD $0.341299
Inventory: 1149
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Technical
Reverse Current-Max 10μA
Non-rep Pk Forward Current-Max 200A
Capacitance @ Vr, F 79pF @ 4V 1MHz
Rep Pk Reverse Voltage-Max 1000V
Reverse Recovery Time 4μs
Number of Phases 1
Current - Average Rectified (Io) 8A
Voltage - DC Reverse (Vr) (Max) 1000V
Application GENERAL PURPOSE
Output Current-Max 1.6A
Operating Temperature - Junction -55°C~150°C
Voltage - Forward (Vf) (Max) @ If 985mV @ 8A
Current - Reverse Leakage @ Vr 10μA @ 1000V
Diode Type Standard
Speed Standard Recovery >500ns, > 200mA (Io)
Configuration SINGLE
Number of Elements 1
Operating Temperature (Max) 150°C
JESD-30 Code R-PDSO-C2
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Reach Compliance Code unknown
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form C BEND
Terminal Position DUAL
HTS Code 8541.10.00.80
Additional Feature FREE WHEELING DIODE, LOW LEAKAGE CURRENT
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1
Part Status Active
JESD-609 Code e3
Series Automotive, AEC-Q101
Packaging Tape & Reel (TR)
Physical
Diode Element Material SILICON
Surface Mount YES
Package / Case DO-214AB, SMC
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
