XBS013S15R-G
RoHS
RoHS compliant

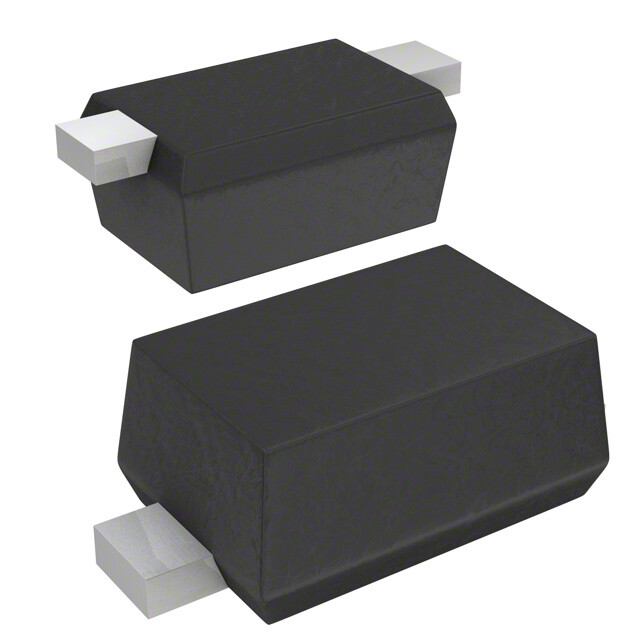

RoHS compliantPackage SC-79, SOD-523
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE SCHOTTKY 30V 100MA SOD523
PDF
/
Buying Options
Total Price: USD $0.4
Unit Price: USD $0.4048
≥1 USD $0.4048
≥10 USD $0.31152
≥100 USD $0.186736
≥500 USD $0.172867
≥1000 USD $0.11755
≥3000 USD $0.108222
Inventory: 128
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case SC-79, SOD-523
Technical
Packaging Tape & Reel (TR)
Published 2009
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
HTS Code 8541.10.00.70
Subcategory Rectifier Diodes
Operating Temperature (Max) 125°C
Number of Elements 1
Configuration SINGLE
Speed Small Signal =< 200mA (Io), Any Speed
Diode Type Schottky
Current - Reverse Leakage @ Vr 2μA @ 25V
Voltage - Forward (Vf) (Max) @ If 1V @ 100mA
Operating Temperature - Junction 125°C Max
Output Current-Max 0.1A
Voltage - DC Reverse (Vr) (Max) 30V
Max Reverse Voltage (DC) 30V
Average Rectified Current 100mA
Reverse Recovery Time 2 ns
Capacitance @ Vr, F 6pF @ 0V 1MHz
Non-rep Pk Forward Current-Max 0.6A
Compliance
RoHS Status ROHS3 Compliant
