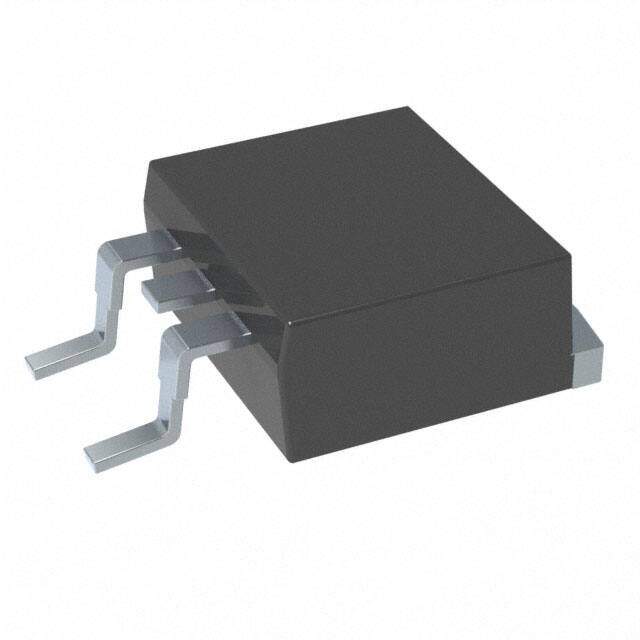

SM74611KTTR
RoHS
RoHS compliant
RoHS compliantPackage TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
Smart Bypass Diode 3-DDPAK/TO-263 -40 to 125
PDF
/
Buying Options
Total Price: USD $3.11
Unit Price: USD $3.1064
≥1 USD $3.1064
≥10 USD $2.61008
≥100 USD $2.111824
Inventory: 4574
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Thickness 4.44mm
Width 8.41mm
Length 10.18mm
Height 4.83mm
Technical
Max Junction Temperature (Tj) 125°C
Number of Drivers 1
Reverse Voltage 28V
Max Repetitive Reverse Voltage (Vrrm) 28V
Peak Reverse Current 300nA
Number of Phases 1
Nominal Input Voltage 30V
Average Rectified Current 15A
Max Reverse Voltage (DC) 30V
Application GENERAL PURPOSE
Operating Temperature - Junction -40°C~125°C
Forward Current 8A
Quiescent Current 0A
Case Connection CATHODE
Voltage - Forward (Vf) (Max) @ If 26mV @ 8A
Output Current 15A
Current - Reverse Leakage @ Vr 300nA @ 28V
Diode Type Standard
Speed Standard Recovery >500ns, > 200mA (Io)
Element Configuration Single
Operating Supply Current 0A
Min Supply Voltage 100mV
Max Supply Voltage 30V
Number of Elements 1
Base Part Number SM74611
Peak Reflow Temperature (Cel) 245
Terminal Form GULL WING
Max Power Dissipation 575mW
Subcategory Rectifier Diodes
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Packaging Tape & Reel (TR)
Physical
Diode Element Material SILICON
Weight 1.946308g
Number of Pins 3
Package / Case TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 6 Weeks
