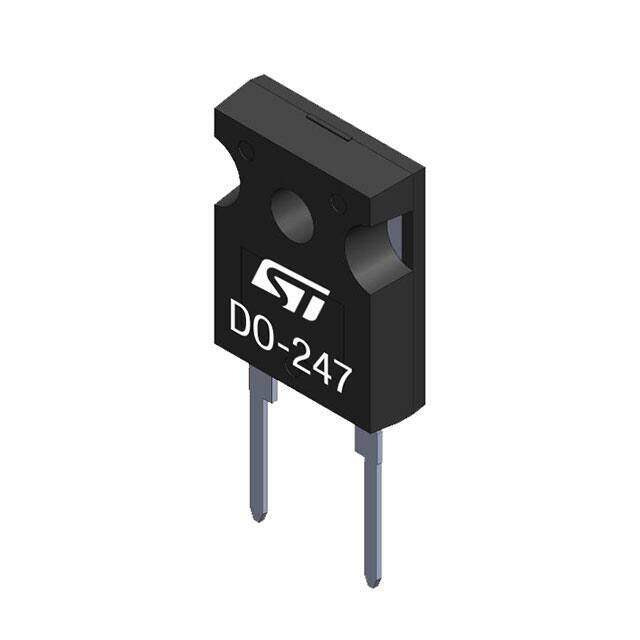

STTH60RQ06W
RoHS
RoHS compliant
RoHS compliantPackage DO-247-2 (Straight Leads)
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
TURBO 2 ULTRAFAST HIGH VOLTAGE R
PDF
/
Buying Options
Total Price: USD $3.42
Unit Price: USD $3.4232
≥1 USD $3.4232
≥10 USD $2.71568
≥100 USD $2.32775
≥500 USD $2.069118
≥1000 USD $1.771686
≥3000 USD $1.668234
Inventory: 421
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mounting Type Through Hole
Package / Case DO-247-2 (Straight Leads)
Surface Mount NO
Diode Element Material SILICON
Technical
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Additional Feature FREE WHEELING DIODE
Terminal Position SINGLE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Reach Compliance Code compliant
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number STTH60
JESD-30 Code R-PSFM-T2
Operating Temperature (Max) 175°C
Number of Elements 1
Configuration SINGLE
Speed Fast Recovery =< 500ns, > 200mA (Io)
Diode Type Standard
Current - Reverse Leakage @ Vr 80μA @ 600V
Operating Temperature - Junction 175°C Max
Output Current-Max 60A
Application HIGH VOLTAGE ULTRA FAST SOFT RECOVERY
Voltage - DC Reverse (Vr) (Max) 600V
Current - Average Rectified (Io) 60A
Number of Phases 1
Reverse Recovery Time 65ns
Rep Pk Reverse Voltage-Max 600V
Non-rep Pk Forward Current-Max 425A
Forward Voltage-Max 2.95V
Reverse Current-Max 80μA
Compliance
RoHS Status RoHS Compliant
Alternative Model
