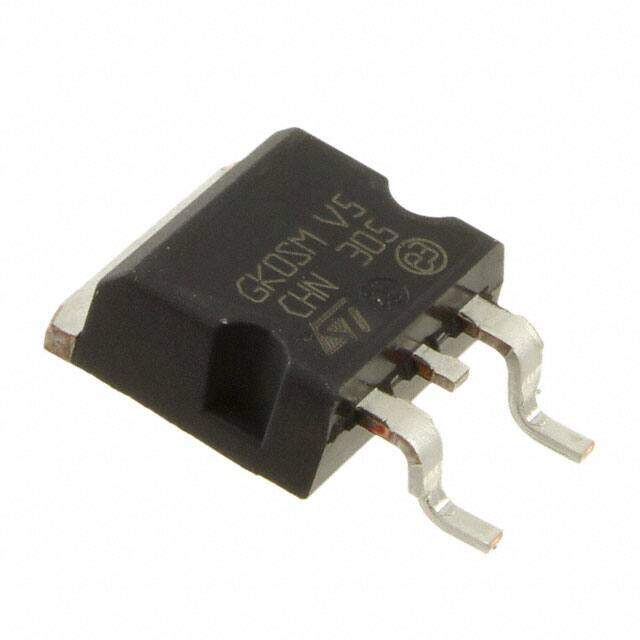

STTH5R06GY-TR
RoHS
RoHS compliant
RoHS compliantPackage TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE GEN PURP 600V 5A D2PAK
PDF
/
Buying Options
Total Price: USD $1.31
Unit Price: USD $1.3112
≥1 USD $1.3112
≥10 USD $1.08856
≥100 USD $0.866624
≥500 USD $0.733251
Inventory: 460
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Lifecycle Status ACTIVE (Last Updated: 6 months ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Diode Element Material SILICON
Technical
Packaging Cut Tape (CT)
Series Automotive, AEC-Q101
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Matte Tin (Sn) - annealed
Max Operating Temperature 175°C
Min Operating Temperature -40°C
Additional Feature FREE WHEELING DIODE
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 245
Reach Compliance Code not_compliant
Time@Peak Reflow Temperature-Max (s) 30
Base Part Number STTH5R06
JESD-30 Code R-PSSO-G2
Number of Elements 1
Element Configuration Single
Speed Fast Recovery =< 500ns, > 200mA (Io)
Diode Type Standard
Current - Reverse Leakage @ Vr 30μA @ 600V
Voltage - Forward (Vf) (Max) @ If 3.2V @ 5A
Case Connection CATHODE
Max Reverse Leakage Current 250μA
Operating Temperature - Junction 175°C Max
Application HIGH VOLTAGE ULTRA FAST RECOVERY
Max Reverse Voltage (DC) 600V
Average Rectified Current 5A
Number of Phases 1
Reverse Recovery Time 35 ns
Non-rep Pk Forward Current-Max 70A
Recovery Time 40 ns
Compliance
RoHS Status ROHS3 Compliant
Alternative Model
