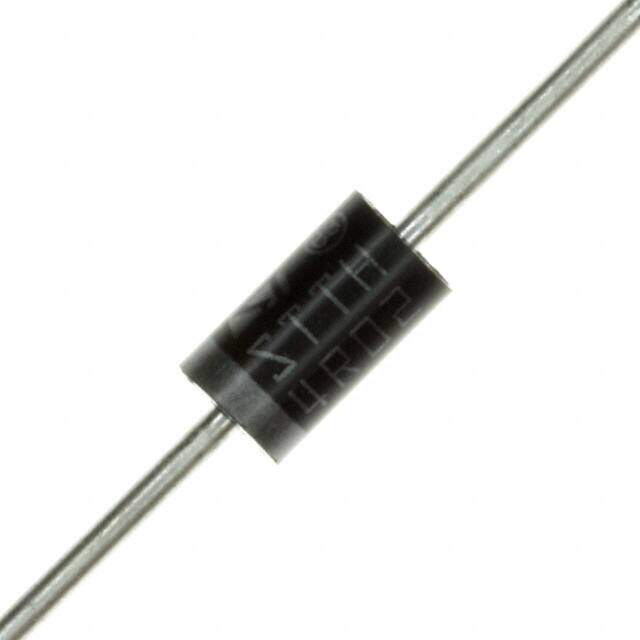

STTH4L06
RoHS
RoHS compliant
RoHS compliantPackage DO-201AD, Axial
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE GEN PURP 600V 4A DO201AD
PDF
/
Buying Options
Total Price: USD $0.35
Unit Price: USD $0.352
≥1 USD $0.352
≥10 USD $0.30272
≥100 USD $0.21032
Inventory: 1466
Minimum: 1
-
+
Technical Details
Technical
Operating Temperature - Junction 175°C Max
Output Current-Max 4A
Application GENERAL PURPOSE
Max Reverse Voltage (DC) 600V
Average Rectified Current 4A
Number of Phases 1
Reverse Recovery Time 75 ns
Peak Reverse Current 3μA
Max Repetitive Reverse Voltage (Vrrm) 600V
Peak Non-Repetitive Surge Current 80A
Forward Current 10A
Case Connection ISOLATED
Voltage - Forward (Vf) (Max) @ If 1.3V @ 3A
Current - Reverse Leakage @ Vr 3μA @ 600V
Diode Type Standard
Speed Fast Recovery =< 500ns, > 200mA (Io)
Element Configuration Single
Number of Elements 1
Pin Count 2
Base Part Number STTH4L06
Terminal Form WIRE
Subcategory Rectifier Diodes
HTS Code 8541.10.00.80
Additional Feature FREE WHEELING DIODE
Min Operating Temperature -65°C
Max Operating Temperature 175°C
Terminal Finish Matte Tin (Sn) - annealed
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Packaging Tape & Box (TB)
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Physical
Diode Element Material SILICON
Number of Pins 2
Package / Case DO-201AD, Axial
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 8 months ago)
Factory Lead Time 8 Weeks
