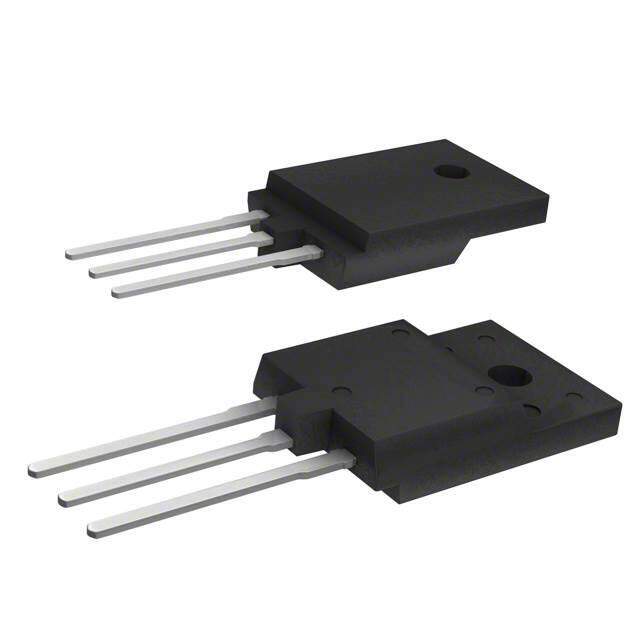

STTH31AC06SPF
RoHS
RoHS compliant
RoHS compliantPackage TO-3P-3 Full Pack
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE GEN PURP 600V 30A TO-3PF
PDF
/
Buying Options
Total Price: USD $2.19
Unit Price: USD $2.1912
≥1 USD $2.1912
≥10 USD $1.76176
≥100 USD $1.44958
≥500 USD $1.226597
≥1000 USD $1.04075
≥3000 USD $0.988715
Inventory: 797
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Reverse Current-Max 10μA
Non-rep Pk Forward Current-Max 150A
Rep Pk Reverse Voltage-Max 600V
Reverse Recovery Time 65ns
Number of Phases 1
Current - Average Rectified (Io) 30A
Voltage - DC Reverse (Vr) (Max) 600V
Application HIGH VOLTAGE ULTRA FAST SOFT RECOVERY
Output Current-Max 30A
Operating Temperature - Junction 175°C Max
Case Connection ISOLATED
Voltage - Forward (Vf) (Max) @ If 2V @ 30A
Current - Reverse Leakage @ Vr 10μA @ 600V
Diode Type Standard
Speed Fast Recovery =< 500ns, > 200mA (Io)
Configuration SINGLE
Number of Elements 1
Operating Temperature (Max) 175°C
JESD-30 Code R-PSFM-T3
Base Part Number STTH31
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Additional Feature SOFT FACTOR IS 2.2
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Packaging Tube
Physical
Diode Element Material SILICON
Surface Mount NO
Package / Case TO-3P-3 Full Pack
Mounting Type Through Hole
Supply Chain
Factory Lead Time 13 Weeks
