STPSC40065CWY
RoHS
RoHS compliant

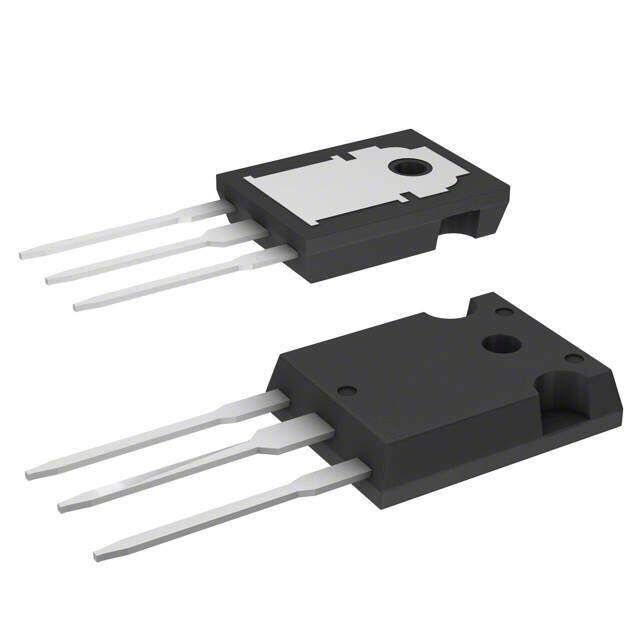

RoHS compliantPackage TO-247-3
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
STMICROELECTRONICS STPSC40065CWY Silicon Carbide Schottky Diode, Dual Common Cathode, 650 V, 20 A, 62 nC, TO-247New
PDF
/
Buying Options
Total Price: USD $9.34
Unit Price: USD $9.3368
≥1 USD $9.3368
≥10 USD $8.22272
≥100 USD $7.111544
≥500 USD $6.44483
≥1000 USD $5.91147
Inventory: 441
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Physical
Mounting Type Through Hole
Package / Case TO-247-3
Surface Mount NO
Number of Pins 3
Technical
Packaging Tube
Series Automotive, AEC-Q101, ECOPACK?2
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
Additional Feature FREE WHEELING DIODE
Terminal Position SINGLE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number STPSC40
Operating Temperature (Max) 175°C
Number of Elements 2
Element Configuration Common Cathode
Speed No Recovery Time > 500mA (Io)
Diode Type Silicon Carbide Schottky
Current - Reverse Leakage @ Vr 300μA @ 650V
Voltage - Forward (Vf) (Max) @ If 1.45V @ 20A
Forward Current 20A
Operating Temperature - Junction -40°C~175°C
Application HIGH VOLTAGE POWER
Voltage - DC Reverse (Vr) (Max) 650V
Number of Phases 1
Reverse Recovery Time 0ns
Max Repetitive Reverse Voltage (Vrrm) 650V
Capacitance @ Vr, F 1250pF @ 0V 1MHz
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
