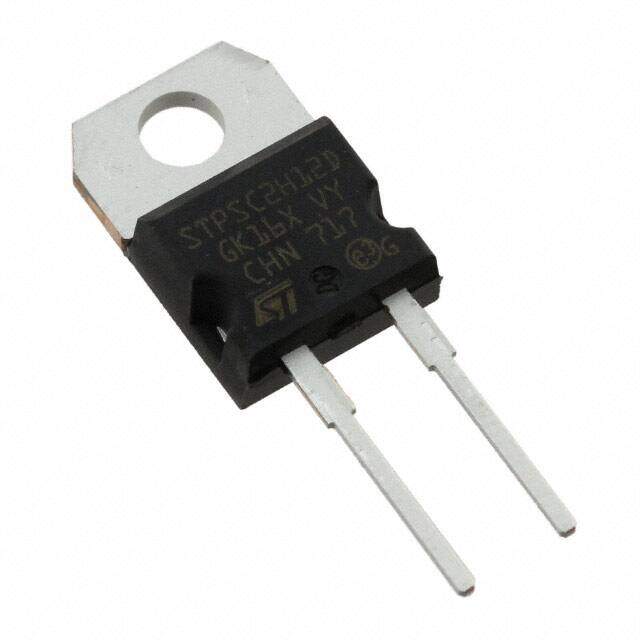

STPSC2H12D
RoHS
RoHS compliant
RoHS compliantPackage TO-220-2
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE SCHOTTKY 1.2KV 2A TO220AC
PDF
/
Buying Options
Total Price: USD $1.6
Unit Price: USD $1.6016
≥1 USD $1.6016
≥10 USD $1.28392
≥100 USD $1.056352
≥500 USD $0.953709
Inventory: 2655
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Reverse Current-Max 12μA
Capacitance @ Vr, F 190pF @ 0V 1MHz
JEDEC-95 Code TO-220AC
Rep Pk Reverse Voltage-Max 1200V
Reverse Recovery Time 0ns
Number of Phases 1
Voltage - DC Reverse (Vr) (Max) 1200V
Application HIGH VOLTAGE POWER
Output Current-Max 5A
Operating Temperature - Junction -40°C~175°C
Forward Current 2A
Case Connection CATHODE
Voltage - Forward (Vf) (Max) @ If 1.5V @ 2A
Current - Reverse Leakage @ Vr 12μA @ 1200V
Diode Type Silicon Carbide Schottky
Speed No Recovery Time > 500mA (Io)
Configuration SINGLE
Number of Elements 1
Operating Temperature (Max) 175°C
JESD-30 Code R-PSFM-T2
Base Part Number STPSC2
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series ECOPACK?2
Packaging Tube
Physical
Surface Mount NO
Package / Case TO-220-2
Mounting Type Through Hole
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 6 months ago)
Factory Lead Time 14 Weeks
