STPS30M60SG-TR
RoHS
RoHS compliant

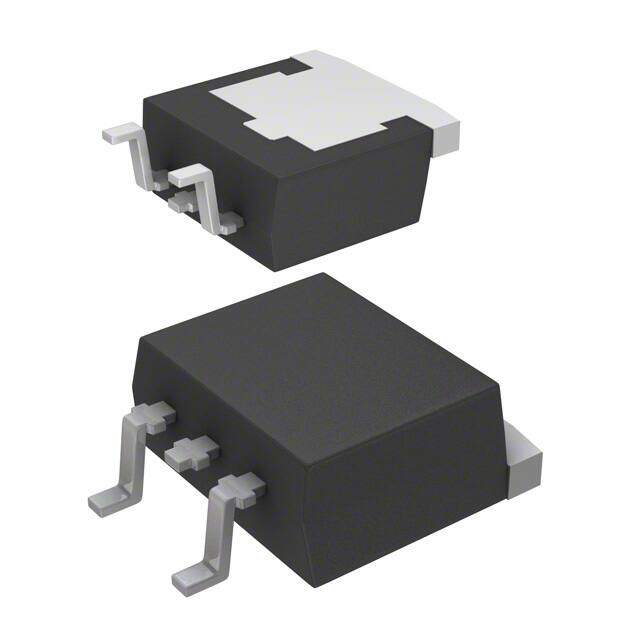

RoHS compliantPackage TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE SCHOTTKY 60V 30A D2PAK
PDF
/
Buying Options
Total Price: USD $1.58
Unit Price: USD $1.584
≥1 USD $1.584
≥10 USD $1.31736
≥100 USD $1.048696
≥500 USD $0.887392
Inventory: 18189
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Lifecycle Status ACTIVE (Last Updated: 6 months ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Number of Pins 3
Diode Element Material SILICON
Technical
Packaging Cut Tape (CT)
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Matte Tin (Sn) - annealed
Max Operating Temperature 150°C
Min Operating Temperature -65°C
Subcategory Rectifier Diodes
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 245
Time@Peak Reflow Temperature-Max (s) 30
Base Part Number STPS30
Pin Count 3/2
JESD-30 Code R-PSSO-G2
Number of Elements 1
Element Configuration Single
Speed Fast Recovery =< 500ns, > 200mA (Io)
Diode Type Schottky
Current - Reverse Leakage @ Vr 165μA @ 60V
Voltage - Forward (Vf) (Max) @ If 590mV @ 30A
Case Connection CATHODE
Forward Current 30A
Max Reverse Leakage Current 165μA
Operating Temperature - Junction 150°C Max
Max Surge Current 600A
Application POWER
Forward Voltage 590mV
Max Reverse Voltage (DC) 60V
Average Rectified Current 30A
Number of Phases 1
Peak Reverse Current 165μA
Max Repetitive Reverse Voltage (Vrrm) 60V
Peak Non-Repetitive Surge Current 600A
Max Forward Surge Current (Ifsm) 600A
Dimensions
Height 4.6mm
Length 10.4mm
Width 9.35mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
