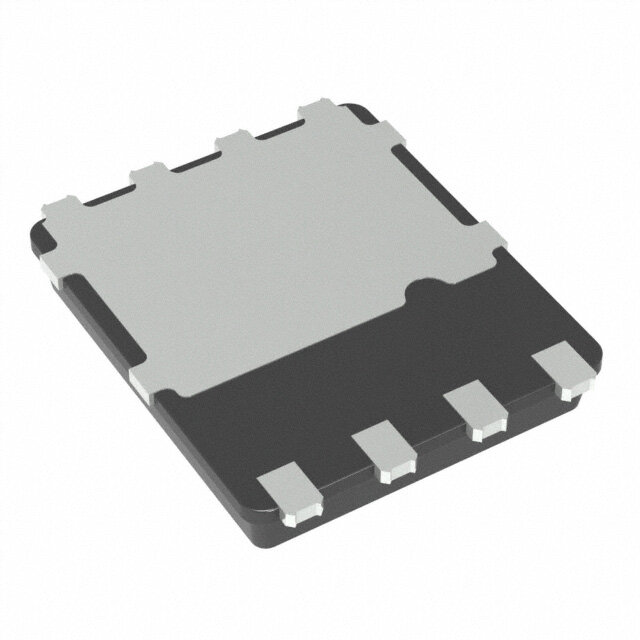

STPS3045DJFY-TR
RoHS
RoHS compliant
RoHS compliantPackage 8-PowerVDFN
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
Automotive Power Schottky Rectifier 45V 30A 8-Pin PowerFLAT T/R
PDF
/
Buying Options
Total Price: USD $1.14
Unit Price: USD $1.144
≥1 USD $1.144
≥10 USD $0.93632
≥100 USD $0.727936
≥500 USD $0.617003
≥1000 USD $0.502621
Inventory: 1338
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Physical
Mounting Type Surface Mount, Wettable Flank
Package / Case 8-PowerVDFN
Surface Mount YES
Diode Element Material SILICON
Technical
Packaging Tape & Reel (TR)
Series Automotive, AEC-Q101
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
Additional Feature FREE WHEELING DIODE
Technology AVALANCHE
Terminal Position DUAL
Terminal Form FLAT
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number STPS3045
JESD-30 Code R-PDSO-F5
Operating Temperature (Max) 175°C
Number of Elements 1
Configuration SINGLE
Speed Fast Recovery =< 500ns, > 200mA (Io)
Diode Type Schottky
Current - Reverse Leakage @ Vr 300μA @ 45V
Voltage - Forward (Vf) (Max) @ If 680mV @ 30A
Case Connection CATHODE
Operating Temperature - Junction -40°C~175°C
Voltage - DC Reverse (Vr) (Max) 45V
Current - Average Rectified (Io) 30A
Number of Phases 1
Rep Pk Reverse Voltage-Max 45V
Non-rep Pk Forward Current-Max 380A
Reverse Current-Max 300μA
Compliance
RoHS Status ROHS3 Compliant
