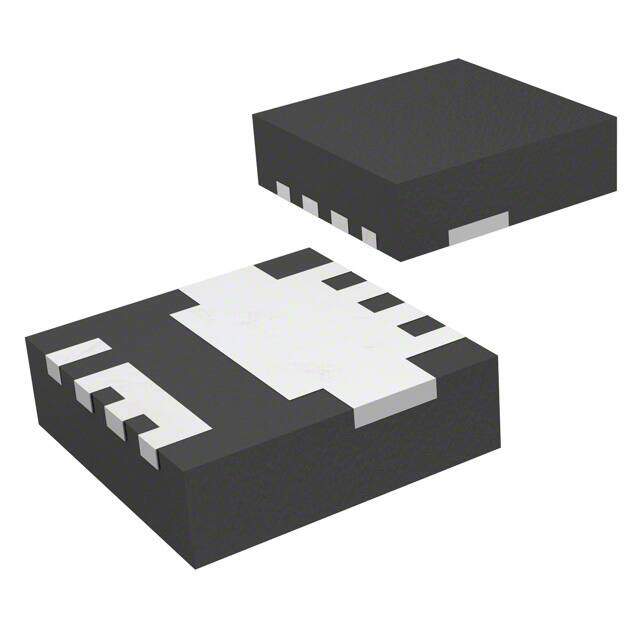

STPS1045DEE-TR
RoHS
RoHS compliant
RoHS compliantPackage 8-PowerTDFN
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE SCHOTTKY 45V 10A POWERFLAT
PDF
/
Buying Options
Total Price: USD $0.95
Unit Price: USD $0.9504
≥1 USD $0.9504
≥10 USD $0.78056
≥100 USD $0.607376
≥500 USD $0.5148
≥1000 USD $0.419364
Inventory: 45702
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 8-PowerTDFN
Number of Pins 8
Diode Element Material SILICON
Technical
Packaging Cut Tape (CT)
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Max Operating Temperature 175°C
Min Operating Temperature -65°C
Additional Feature FREE WHEELING DIODE
Terminal Position DUAL
Base Part Number STPS1045
JESD-30 Code S-PDSO-N3
Number of Elements 1
Element Configuration Single
Speed Fast Recovery =< 500ns, > 200mA (Io)
Diode Type Schottky
Current - Reverse Leakage @ Vr 200μA @ 45V
Voltage - Forward (Vf) (Max) @ If 590mV @ 10A
Case Connection CATHODE
Forward Current 10A
Max Reverse Leakage Current 200μA
Operating Temperature - Junction 175°C Max
Max Surge Current 100A
Forward Voltage 590mV
Max Reverse Voltage (DC) 45V
Average Rectified Current 10A
Number of Phases 1
Peak Reverse Current 200μA
Max Repetitive Reverse Voltage (Vrrm) 45V
Peak Non-Repetitive Surge Current 100A
Max Forward Surge Current (Ifsm) 100A
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
